WAGO

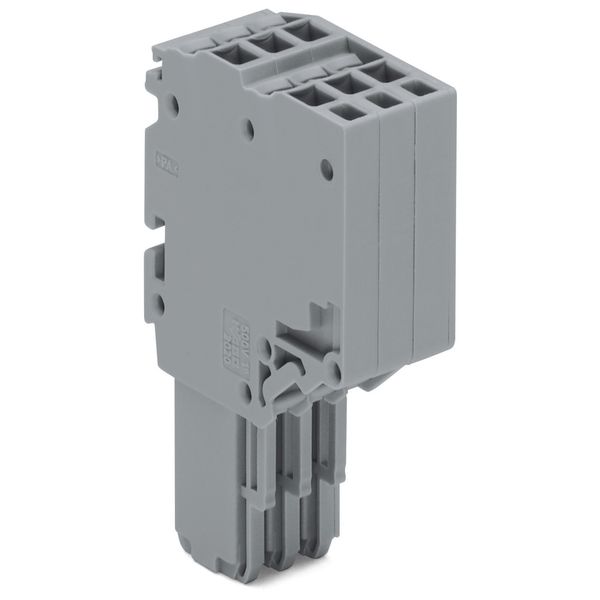

2-conductor female connector

In stock: No Vendor stock: No Minimal order quantity: 50
Price (excl. VAT):
3,41 €
This price is valid until 24.12.25
Subtotal: 170,50 € MOQ: 50
EAN: 4050821245216
MPN: 2020-203
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name 2-conductor female connector
Brand WAGO
Categories Terminal Block Accessories
Country of origin CN
Rated voltage 500 V
Rated current In 13.5 A
Explosion-tested version 'Ex e' No

Packing details

Packing level 1 4050821245216

Other Technical data

Mounting method Other
Colour Grey

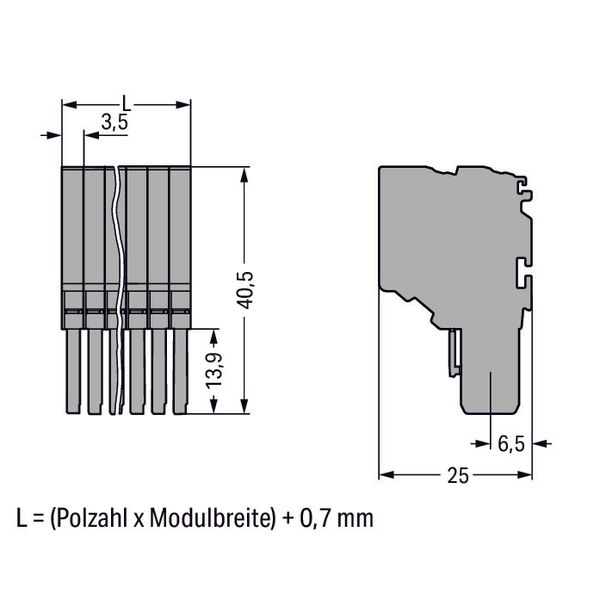

Width 11.2 mm
Halogen free Yes
Height 25 mm
Depth 40.5 mm
Number of poles 3
Operating temperature 105 °C
Number of clamp positions per pole 2
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Transparent No
Connectable conductor cross section solid-core 0.5-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-0.75 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.14-1.5 mm²
Connectable conductor cross section multi-wired 0.14-1 mm²
Material insulation body Thermoplastic

Description

2-conductor female connector | 1.5 mm² | 3-pole
