WAGO

2-conductor actuator terminal block with 1N4007 recovery diode with co

Order only Minimal order quantity: 50
Price (excl. VAT):
3,87 €
This price is valid until 24.12.25
Subtotal: 193,50 € MOQ: 50
EAN: 4045454194550
MPN: 280-562/281-411
Package: 1
Box: 50
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name 2-conductor actuator terminal block with 1N4007 recovery diode with co
Brand WAGO
Categories DIN Rail Terminal Blocks
Country of origin DE
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Number of clamp positions per level 3
Internally connected stages No

Packing details

Packing level 1 4045454194550
Packing level 2 4045454194550

Other Technical data

Colour Grey
Width 5 mm
Height 80 mm
Depth 55.5 mm
Rated voltage 400 V
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
With PE connection No
With shield connection No
With power supply function No
LED switching for No
Cross connectable No
Disconnect function No
Connectable conductor cross section solid-core 0.08-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-2.5 mm²
Connectable conductor cross section multi-wired 0.08-2.5 mm²
Material insulation body Thermoplastic
Rated current In 20 A
Explosion-tested version 'Ex e' No

Description

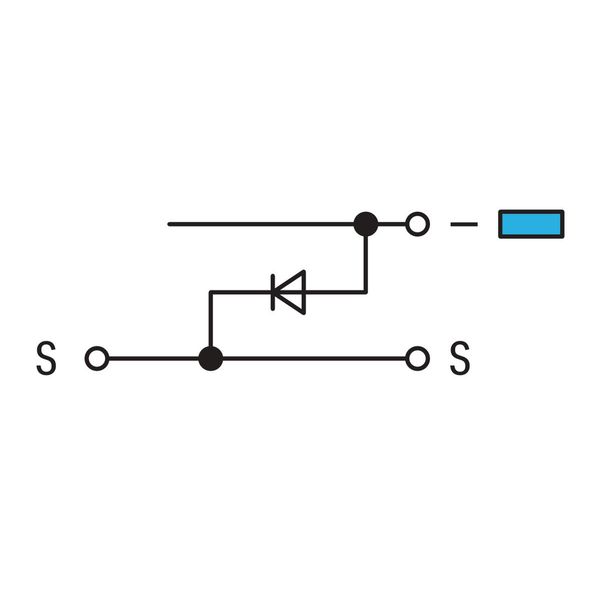

2-conductor actuator terminal block with 1N4007 recovery diode with colored conductor entries 2.5 mm² CAGE CLAMP® 2,50 mm² gray
