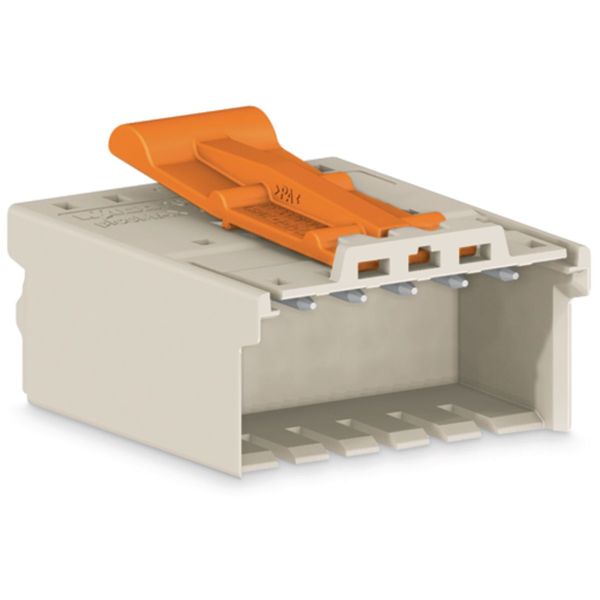

1-conductor male connector Push-in CAGE CLAMP® 1.5 mm² light gray

Name: 1-conductor male connector Push-in CAGE CLAMP® 1.5 mm² light gray
Brand: WAGO
Price: 1.440 EUR
Availability: PreOrder

Order only Minimal order quantity: 200

Price (excl. VAT):

1,44 €

This price is valid until 31.12.25

Subtotal: 288,00 € MOQ: 200

EAN: 4050821161363

MPN: 2091-1524/002-000

Package: 1

Box: 200

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	1-conductor male connector Push-in CAGE CLAMP® 1.5 mm² light gray
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Rated voltage	160 V
Rated current In	10 A
Explosion-tested version 'Ex e'	No

Packing level 1	4050821161363
Packing level 2	4050821161363

Mounting method	Other
Colour	Other

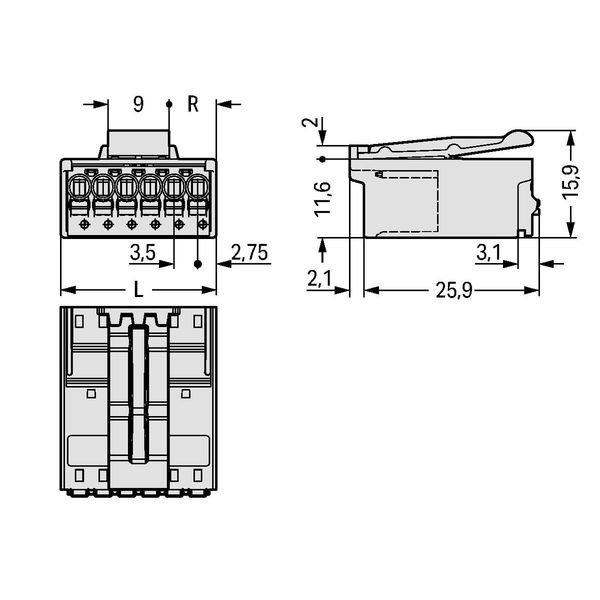

Width	3.5 mm
Height	28 mm
Depth	15.9 mm
Number of poles	4
Operating temperature	-60-100 °C
Number of clamp positions per pole	1
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.2-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-0.75 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-1.5 mm²
Connectable conductor cross section multi-wired	0.2-1.5 mm²
Material insulation body	Other
