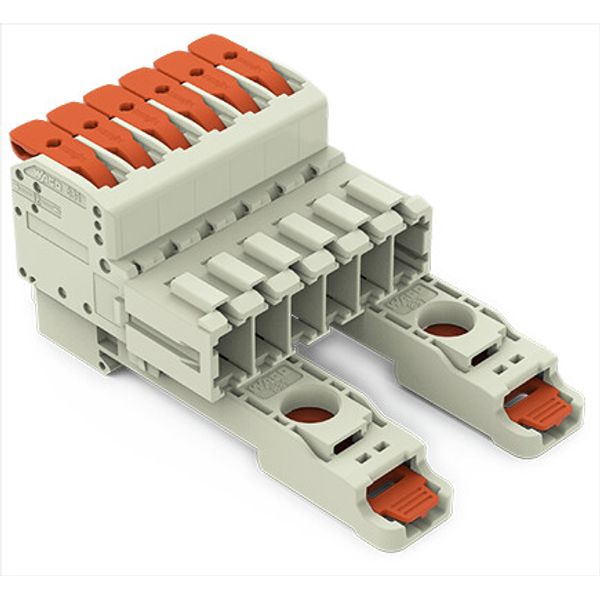

831-1206/306-000 1-conductor male connector; lever; Push-in CAGE CLAMP®

Order only Minimal order quantity: 6

Price (excl. VAT):

11,29 €

This price is valid until 24.12.26

Subtotal: 67,74 € MOQ: 6

EAN: 4055144062502

MPN: 831-1206/306-000

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	831-1206/306-000 1-conductor male connector; lever; Push-in CAGE CLAMP®
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Rated voltage	1000 V
Number of poles	6
Operating temperature	-60-105 °C
Rated surge voltage	0 kV
Rated current In	41 A

Packing details

Packing level 1

4055144062502

Other Technical data

Inflammability class of insulation material according to with UL94	V0
Diameter connection pin	0 mm
Length pin	0 mm
Modular spacing connections	0 mm
Number of plug-in contact rows	0
Suitable for PCB thickness	0 mm
Modular spacing contacts	0 mm
Material insulation body	Thermoplastic

Description

1-conductor male connector; lever; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 6-pole; 100% protected against mismating; DIN-35 rail/panel mounting; 10,00 mm²; light gray
