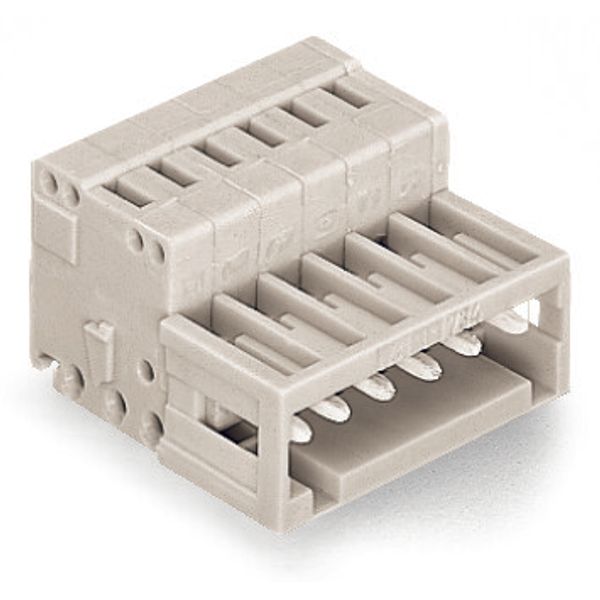

1-conductor male connector

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

2,99 €

This price is valid until 24.12.25

Subtotal: 149,50 € MOQ: 50

EAN: 4044918515931

MPN: 734-305/033-000

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	1-conductor male connector
Brand	WAGO
Categories	Cable Connectors
Country of origin	DE
Type of connection	Printed circuit board to printed circuit board
Rated voltage	160 V
Number of poles	5
Contact type	Pin
Operating temperature	-60-100 °C
Rated surge voltage	2.5 kV
Degree of protection (IP), mounted	IP10
Angle contact/conductor connection	180° (horizontal)
Rated current In	10 A

Packing level 1

4044918515931

Colour housing	Grey
Housing material	Plastic
Inflammability class of insulation material according to with UL94	V0
Type of electric connection	Spring clamp connection
Material of contact surface	Tin
Over voltage category	III
Pollution degree	2
Connectable cable type	Tubular cable
Modular spacing connections	3.5 mm
Number of plug-in contact rows	1
Modular spacing contacts	3.5 mm
Connectable conductor cross section solid-core	0.08-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.8-1.5 mm²
Connectable conductor cross section multi-wired	0.08-1.5 mm²
With protective conductor	No
Material insulation body	Ceramics
Material contact	Other copper alloys

1-conductor male connector | 100% protected against mismating | Strain relief plate | 1.5 mm² | Pin spacing 3.5 mm
