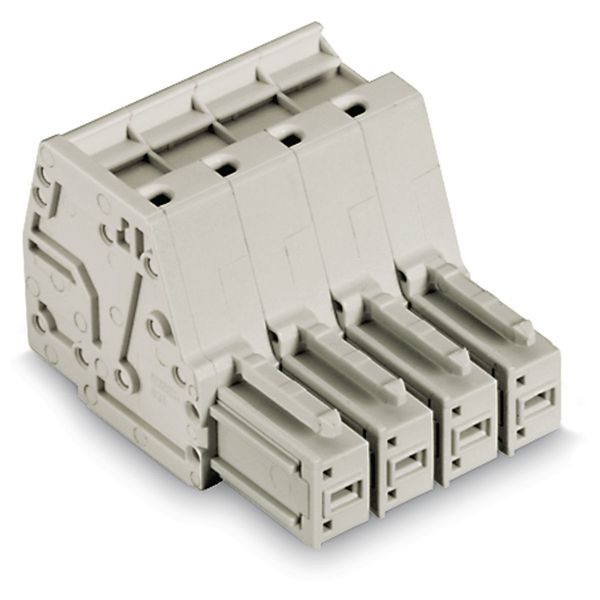

831-3104/135-000 1-conductor female connector; Push-in CAGE CLAMP®; 10 mm²

In stock: No Vendor stock: No Minimal order quantity: 36

Price (excl. VAT):

4,89 €

This price is valid until 24.12.25

Subtotal: 176,04 € MOQ: 36

EAN: 4055143511254

MPN: 831-3104/135-000

Package: 1

Box: 36

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	831-3104/135-000 1-conductor female connector; Push-in CAGE CLAMP®; 10 mm²
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin	DE
Harmonized System Code	8536 6990 00
Rated voltage	1000 V
Rated current In	41 A
Explosion-tested version 'Ex e'	No

Packing details

Packing level 1	4055143511254
Packing level 2	4055143511254

Other Technical data

Mounting method	Other
Colour	Other

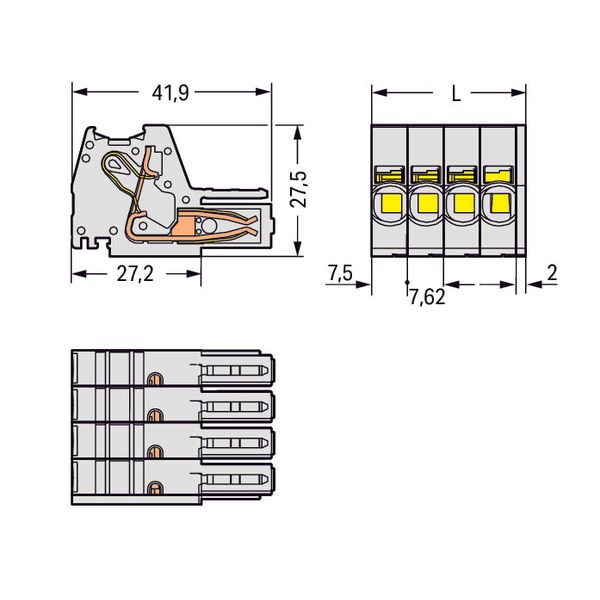

Width	7.62 mm
Height	41.9 mm
Depth	27.55 mm
Number of poles	4
Operating temperature	105 °C
Number of clamp positions per pole	1
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-10 mm²
Connectable conductor cross section multi-wired	0.5-10 mm²
Material insulation body	Thermoplastic

Description

1-conductor female connector; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 4-pole; 100% protected against mismating; Gripping plate; 10,00 mm²; light gray
