Female Connector 16-Pole, 1-Conductor, 1.5 mm², Black
Order only
Minimal order quantity: 50
EAN: 4055143233903
MPN: 714-116
Box: 50
Price (excl. VAT)
4,08 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | 1-conductor female connector push-button 1.5 mm² black |
| Brand | WAGO |
| Categories |
Terminal Strips
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001284 |
| Rated voltage | 160 V |
| Rated current In | 8 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4055143233903 |
Other Technical data
| Mounting method | Other |
| Colour | Black |

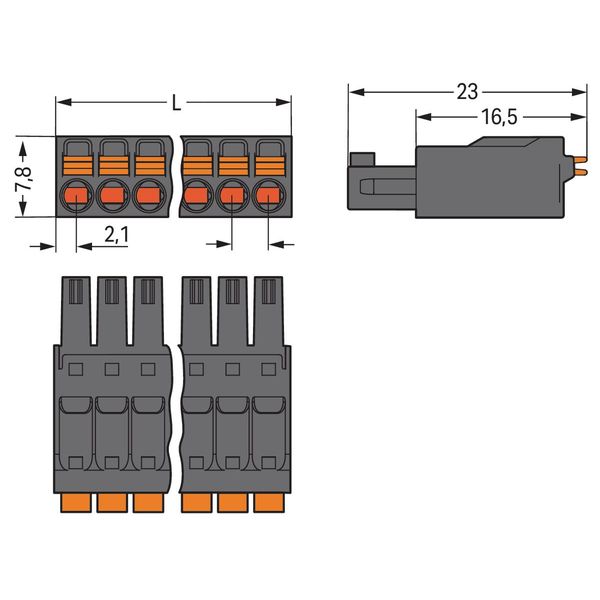

| Width | 3.5 mm |
| Height | 7.8 mm |
| Depth | 23 mm |
| Number of poles | 16 |
| Operating temperature | -60-100 °C |
| Number of clamp positions per pole | 1 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Plug-in connection |
| Type of electrical connection 2 | Plug-in connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.2-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-1.5 mm² |
| Connectable conductor cross section multi-wired | 0.2-1.5 mm² |
| Material insulation body | Thermoplastic |
Downloads
Description
1-conductor female connector push-button 1.5 mm² Pin spacing 3.5 mm 16-pole 1,50 mm² black
