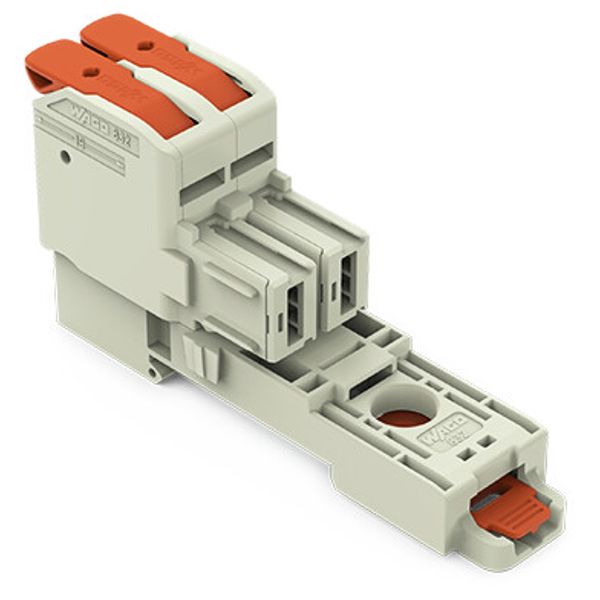

Female Connector 2-Pole, 16 mm², 10.16 mm Pitch, DIN-35 Rail/Panel Mounting

Order only Minimal order quantity: 5

EAN: 4055144061451

MPN: 832-1102/306-000

Package: 1

Price (excl. VAT)

4,87 €

per unit

MOQ: 5

EDT to our warehouse: 4-6 weeks

Price valid until 24.12.26 or while in stock

Technical Information

Item condition	New
Manufacture name	832-1102/306-000 1-conductor female connector; lever; Push-in CAGE CLAMP®
Brand	WAGO
Categories	PCB Connectors & Terminals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC002637
Rated voltage	1000 V
Number of poles	2
Operating temperature	-60-120 °C
Rated surge voltage	0 kV
Rated current In	76 A

Packing details

Packing level 1

4055144061451

Other Technical data

Inflammability class of insulation material according to with UL94	V0
Diameter connection pin	0 mm
Length pin	0 mm
Modular spacing connections	0 mm
Number of plug-in contact rows	0
Suitable for PCB thickness	0 mm
Modular spacing contacts	0 mm
Material insulation body	Thermoplastic

Description

1-conductor female connector; lever; Push-in CAGE CLAMP®; 16 mm²; Pin spacing 10.16 mm; 2-pole; 100% protected against mismating; DIN-35 rail/panel mounting; Silver-plated contacts; 16,00 mm²; light gray
