832-1106/314-000 1-conductor female connector; lever; Push-in CAGE CLAMP®

Name: 832-1106/314-000 1-conductor female connector; lever; Push-in CAGE CLAMP®
Brand: WAGO
Price: 11.750 EUR
Availability: PreOrder

Order only Minimal order quantity: 5

Price (excl. VAT):

11,75 €

This price is valid until 24.12.26

Subtotal: 58,75 € MOQ: 5

EAN: 4055143937900

MPN: 832-1106/314-000

Package: 1

Box: 5

Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition	New
Manufacture name	832-1106/314-000 1-conductor female connector; lever; Push-in CAGE CLAMP®
Brand	WAGO
Categories	Terminal Strips
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001284
Rated voltage	1000 V
Rated current In	76 A
Explosion-tested version 'Ex e'	No

Packing details

Packing level 1	4055143937900
Packing level 2	4055143937900

Other Technical data

Mounting method	Other
Colour	Other
Width	10.16 mm
Height	45.7 mm
Depth	29.1 mm
Number of poles	6
Operating temperature	-60-120 °C
Number of clamp positions per pole	1
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.75-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.75-25 mm²
Connectable conductor cross section multi-wired	0.75-25 mm²
Material insulation body	Thermoplastic

Description

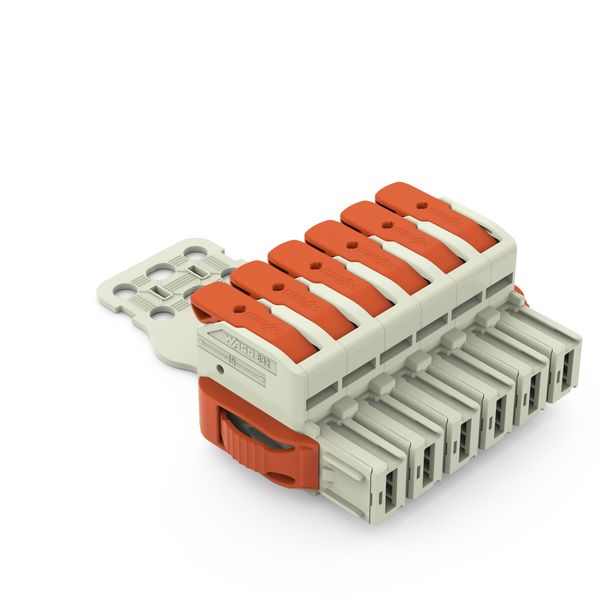

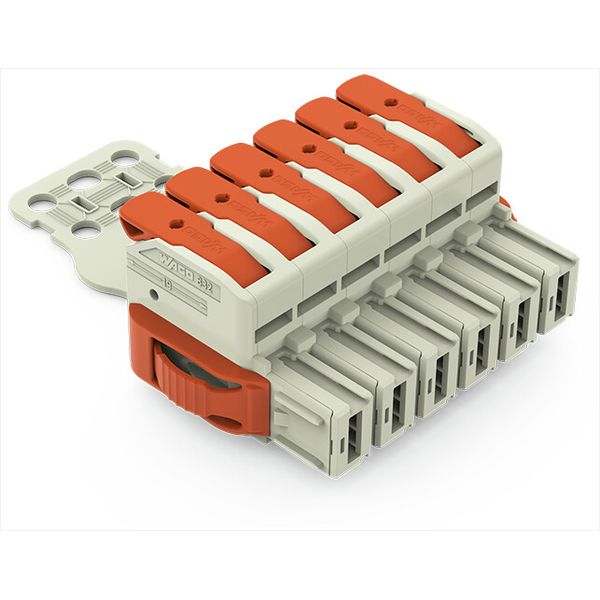

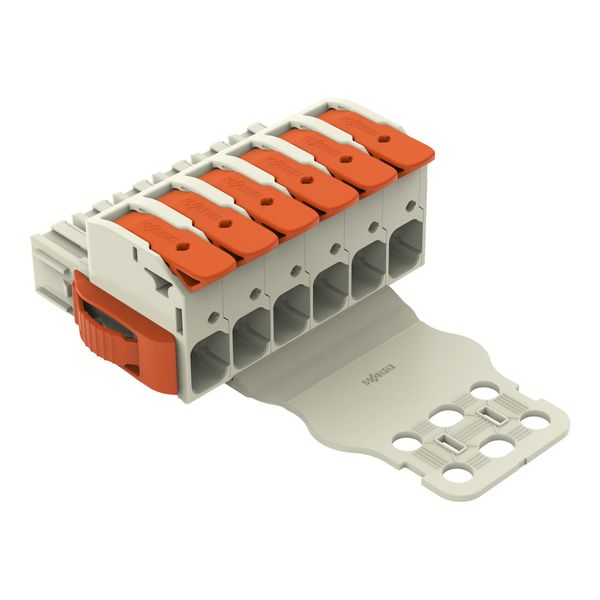

1-conductor female connector; lever; Push-in CAGE CLAMP®; 16 mm²; Pin spacing 10.16 mm; 6-pole; 100% protected against mismating; Lateral locking levers; Strain relief plate; Silver-plated contacts; 16,00 mm²; light gray
