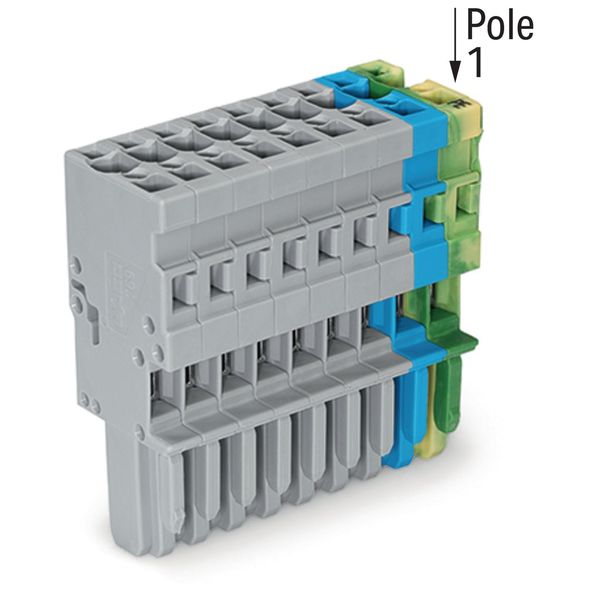

1-conductor female connector CAGE CLAMP® 4 mm² green-yellow/blue/gray

Order only Minimal order quantity: 25

Price (excl. VAT):

5,94 €

This price is valid until 24.12.25

Subtotal: 148,50 € MOQ: 25

EAN: 4050821653479

MPN: 769-110/000-038

Box: 25

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	1-conductor female connector CAGE CLAMP® 4 mm² green-yellow/blue/gray
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Rated voltage	500 V
Rated current In	32 A
Explosion-tested version 'Ex e'	No

Packing level 1

4050821653479

Mounting method	Other
Colour	Multi-coloured
Width	50 mm
Halogen free	Yes
Height	18.3 mm
Depth	45.2 mm
Number of poles	10
Operating temperature	105 °C
Number of clamp positions per pole	1
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-4 mm²
Connectable conductor cross section multi-wired	0.08-4 mm²
Material insulation body	Thermoplastic

1-conductor female connector CAGE CLAMP® 4 mm² Pin spacing 5 mm 10-pole coding finger 4,00 mm² green-yellow/blue/gray
