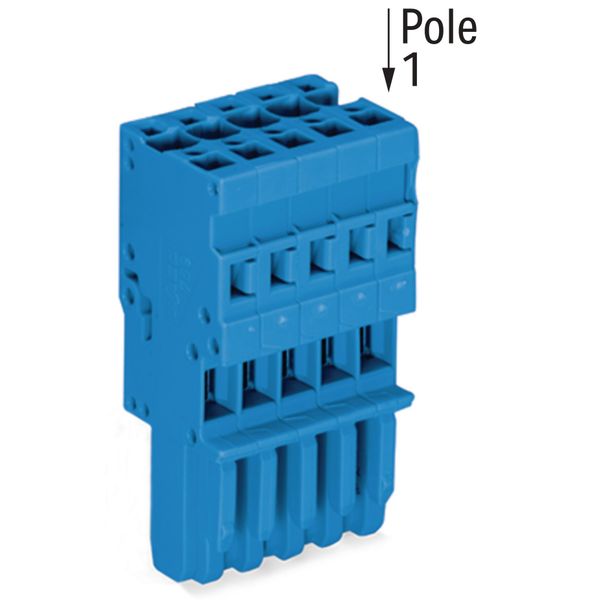

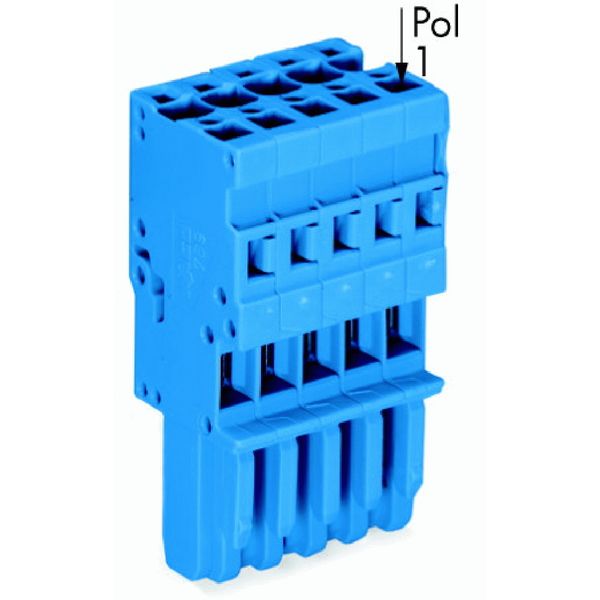

1-conductor female connector CAGE CLAMP® 4 mm² blue
Order only
Minimal order quantity: 10
Price (excl. VAT):
9,39 €
Subtotal: 93,90 €
MOQ: 10
EAN: 4045454681920
MPN: 769-115/000-006
Box: 10
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 1-conductor female connector CAGE CLAMP® 4 mm² blue |
| Brand | WAGO |
| Categories |
Terminal Block Accessories
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 500 V |
| Rated current In | 32 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4045454681920 |
Other Technical data
| Mounting method | Other |
| Colour | Blue |

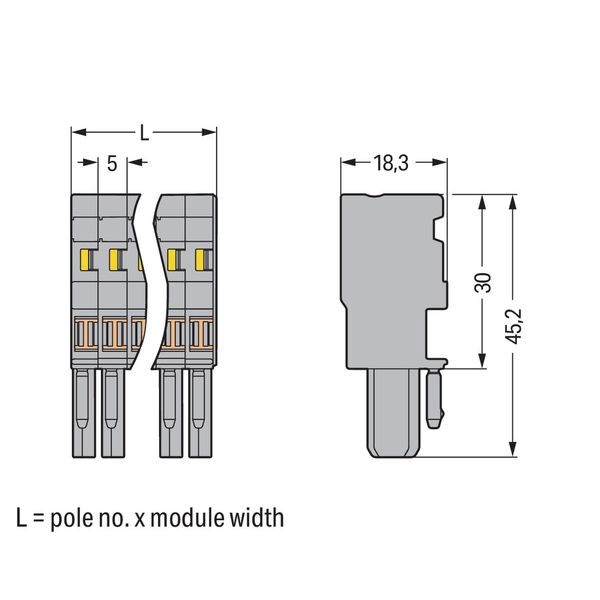

| Width | 75 mm |
| Halogen free | Yes |
| Height | 18.3 mm |
| Depth | 45.2 mm |
| Number of poles | 15 |
| Operating temperature | 105 °C |
| Number of clamp positions per pole | 1 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.08-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-4 mm² |
| Connectable conductor cross section multi-wired | 0.08-4 mm² |
| Material insulation body | Thermoplastic |
Description
1-conductor female connector CAGE CLAMP® 4 mm² Pin spacing 5 mm 15-pole coding finger 4,00 mm² blue
