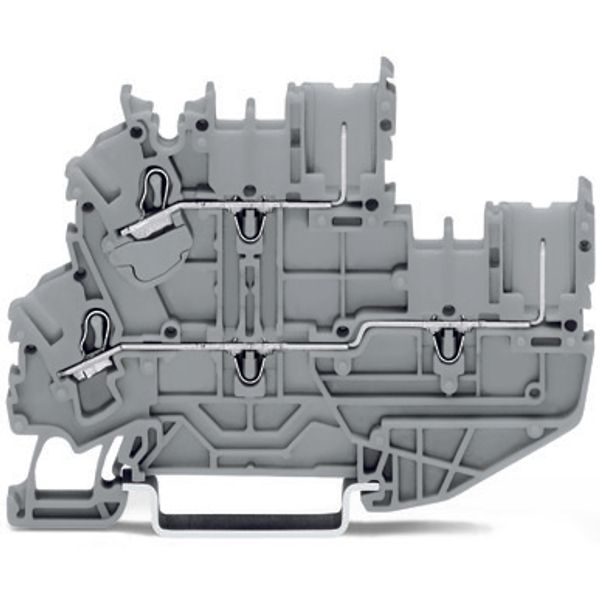

1-conductor/1-pin double deck receptacle terminal block Through/throug

Order only Minimal order quantity: 50

Price (excl. VAT):

1,42 €

This price is valid until 24.12.25

Subtotal: 71,00 € MOQ: 50

EAN: 4055143299572

MPN: 2022-2202/999-953

Box: 50

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	1-conductor/1-pin double deck receptacle terminal block Through/throug
Brand	WAGO
Categories	DIN Rail Terminal Blocks
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	630 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Plug-in connection
Number of levels	2
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.75-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25-4 mm²
Connectable conductor cross section multi-wired	0.25-2.5 mm²
Rated current In	20 A

Packing level 1

4055143299572

Colour	Grey
Width	5.2 mm
Height	80.1 mm
Depth	51.3 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Internally connected stages	FALSE
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	Yes

1-conductor/1-pin double deck receptacle terminal block Through/through terminal block 2.5 mm² N/L without marker carrier suitable for Ex nA appl
