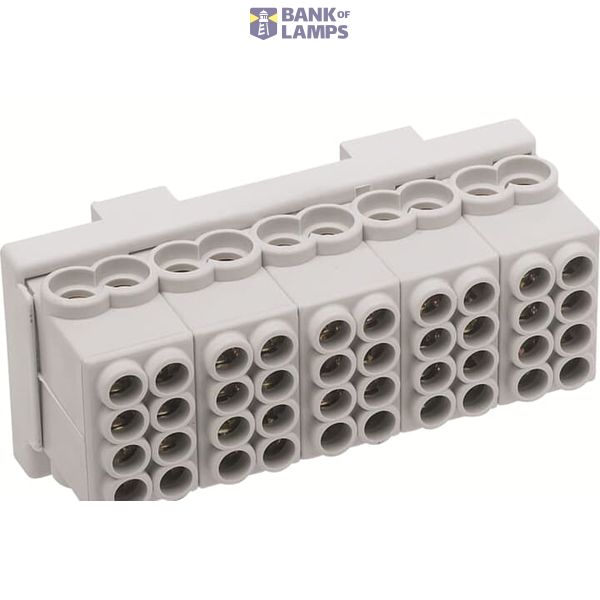

ZK335 Main Line Terminal 5-pole
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ZK335 Main Line Terminal 5-pole |
| Brand | ABB |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000275 |
| Nominal current | 63 A |
| Number of poles | 5 |
| Suitable for solid conductors | TRUE |
Packing details
| Packing level 1 | 4011617643357 |
| Packing level 2 | 4011617643357 |
Other Technical data
| Mounting method | DIN rail |
| Width | 100 mm |
| Height | 52 mm |
| Depth | 37 mm |
| Connection type | Screwing |
| Number of inputs | 10 |
| Number of outputs | 10 |
| Contact safe | TRUE |
| Suitable for fine strand conductors | TRUE |
| Suitable for stranded conductors | TRUE |
| Suitable for fine strand conductors without cable end sleeve | FALSE |
| Suitable for extra fine-strand conductors | TRUE |
| Suitable for extra fine-strand conductors without cable end sleeve | FALSE |
| Conductor cross section, input | 16-25 mm² |
| Conductor cross section, output | 16-25 mm² |
| Conductor cross section, input AWG | 4-5 mm² |
| Conductor cross section, output AWG | 4-5 mm² |
Description
Main circuit terminal, 5-pole, contact points 5 x 4, for 35 mm top-hat rails, stranded 4 x 25 mm² per pole (according to DIN VDE 0603-2, version C, finger-safe).
