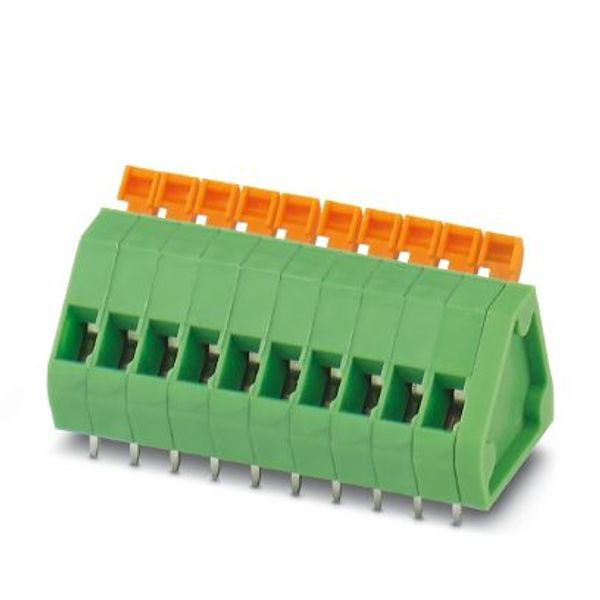

The figure shows the 10-position version image 1

The figure shows the 10-position version image 2

ZFKDSA 1-W-3,81- 7 - PCB terminal block

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

1,38 € per pcs

This price is valid until 24.12.25

Subtotal: 69,00 € MOQ: 50

EAN: 4046356299916

MPN: 1747931

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	ZFKDSA 1-W-3,81- 7 - PCB terminal block
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	PL
Harmonized System Code	8536 9010 00
Height	19.48 mm
Colour housing	Green
Inflammability class of insulation material according to with UL94	V0
Connection type conductor	Spring clamp connection
Connectable conductor cross section solid-core	0.14-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-1 mm²
Material insulation body	Other
Type of PCB fastening	Connecting contact

Packing details

Packing level 1

4046356299916, 4046356299916

Description

PCB terminal block, nominal current: 12 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: ZFKDS(A) 1-W, pitch: 3.81 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
