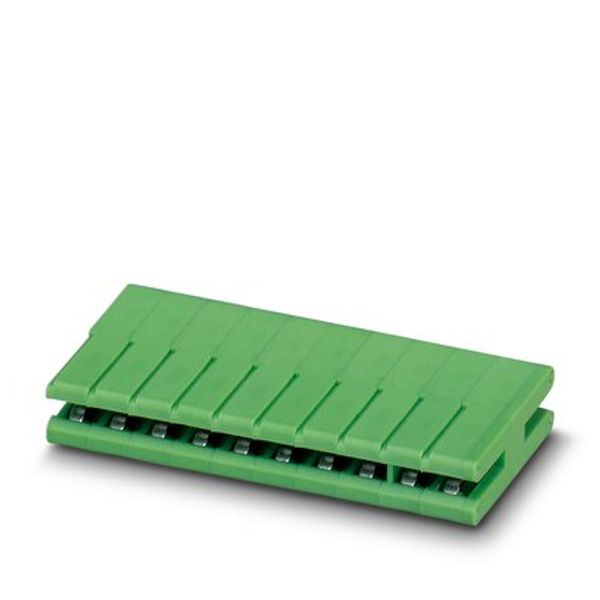

ZEC 1,5/ 8-LPV-5,0 C2 - PCB connector
Order only
Minimal order quantity: 50
Price (excl. VAT):
4,97 €
per pcs
Subtotal: 248,50 €
MOQ: 50
EAN: 4017918167035
MPN: 1898321
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ZEC 1,5/ 8-LPV-5,0 C2 - PCB connector |
| Brand | Phoenix Contact |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | GR |
| Harmonized System Code | 8536 6930 00 |
| Type of connection | Printed circuit board to cable |
| Rated voltage | 320 V |
| Number of poles | 8 |
| Operating temperature | -40-100 °C |
| Rated surge voltage | 4 kV |
| Type of electric connection | Other |
| Angle PCB/contact | Other |
| Rated current In | 10 A |
Packing details
| Packing level 1 | 4017918167035, 4017918167035 |
Other Technical data
| Colour housing | Green |
| Contact type | Bus |
| Type of fastening | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Tin |
| Over voltage category | III |
| Pollution degree | 2 |
| Modular spacing connections | 5 mm |
| Number of plug-in contact rows | 1 |
| Type of banding | Carton (for SMD) |
| Modular spacing contacts | 5 mm |
| Material insulation body | Other |
| Type of PCB fastening | Other |
Description
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: ZEC 1,5/..-LPV, pitch: 5 mm, mounting: Direct plug-in method, conductor/PCB connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, Locking: without, mounting: without, type of packaging: packed in cardboard
