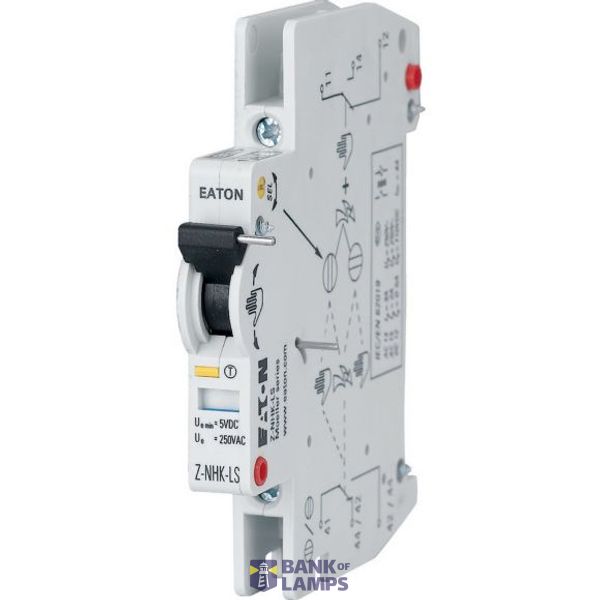

Z-NHK-LS Eaton Distribution parts

Name: Z-NHK-LS Eaton Distribution parts
Brand: EATON
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Z-NHK-LS Eaton Distribution parts
Brand	EATON
Country of origin*	RS
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
ETIM	EC001286
Device fitting	Universal
Number of contacts as normally open contact	0
With auto test for earth leakage function	No
Suitable for max. current main contact unit	4 A

Packing details

Packing level 1	4015081780624
Packing level 2	9008790772269

Other Technical data

Rated voltage	250 V
Installed at the factory	No
Width in number of modular spacings	0.5
Rated switch current	4 A
Number of fault-signal switches	0
Additional equipment	Signalling switch
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	2
Suitable for max. number of poles main contact unit (total)	2

Description

Type conforms to IEC/EN 60947-5-1, IEC/EN 62019, can be retrofitted (screws), specified minimum voltages are for each contact gap, especially important to observe with series connections!, the function of the two changeover contacts can be switched from zauxiliary contactz to ztrip indication contactz., tripping signaling contact signals electrical tripping, non-mechanical Shutdown, test button for zelectrical trippingz contact function
