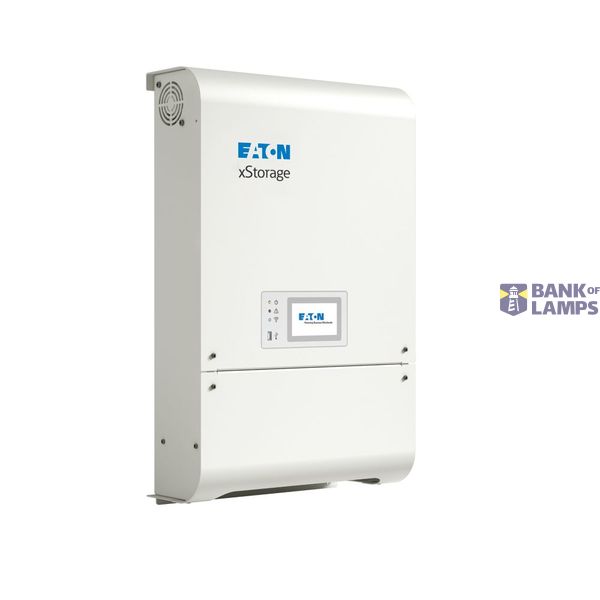

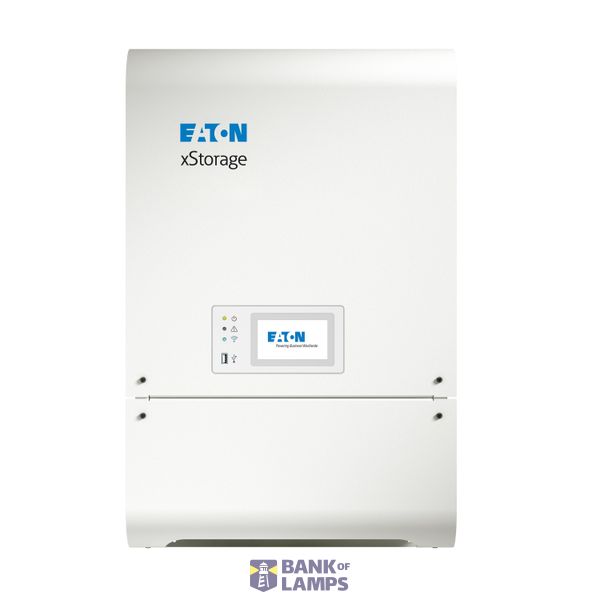

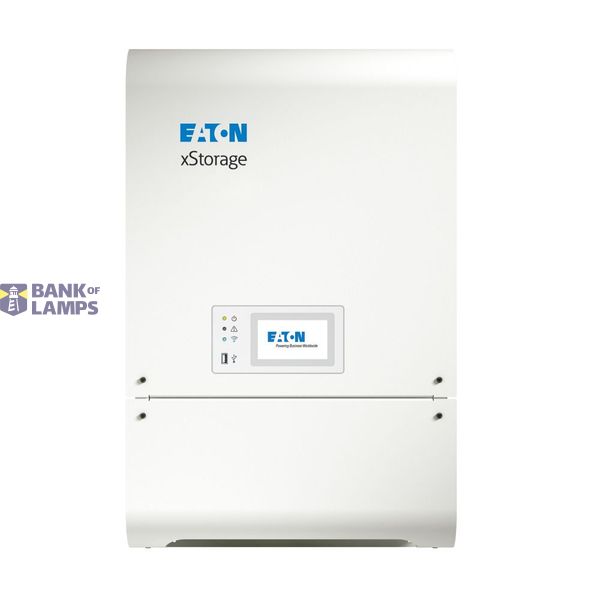

XSTH Inverter 3Ph 5kW PV 7.5
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | XSTH Inverter 3Ph 5kW PV 7.5 |
| Brand | EATON |
| ETIM | EC001747 |
| Width | 476 mm |
| Height | 735 mm |
| Wireless | Yes |
| Depth | 170 mm |
| Weight | 25 kg |
| With transformer | No |
| Display | Standard |
| Voltage type of supply voltage | AC/DC |
| Ethernet | Yes |
| Nominal output power AC | 5000 W |
| Suitable for outdoor mounting | No |
| Max. input power DC | 7500 W |
| Output phases | 3-phase |
| Degree of protection (IP) | IP20 |
| Built-in battery | No |
| Max. input current DC | 13 A |
| Number of independent MPPT inputs | 2 |
| Suitable for emergency power | Yes |
| Usable battery capacity | 28 kWh |
| Max. input voltage DC | 1000 V |
| Max. input current DC per MPP tracker | 13 A |
| Max. input current DC per string input | 13 A |
| Max. efficiency | 97.6 % |
| Integrated DC switch | Yes |
| String connetions per MPPT input | 2 |
| DC connection | Spring clamp connection |
| AC connection | Screw connection |
| With data logging | Yes |
Packing details
| Packing level 1 | 3553340100871 |
Description
Eaton xStorage Home three-phase inverter, 5 kW, 5 kW, DC and AC coupled, PV 7.5
