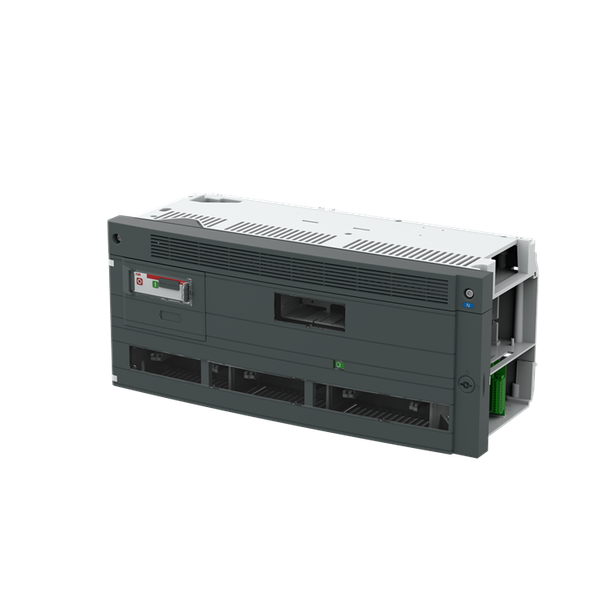

XRG2-50/10-4P-MOT Switch disconnector fuse
Order only
Price (excl. VAT):
1 738,67 €
EAN: 3800161651328
MPN: 1SEP204482R7702
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | XRG2-50/10-4P-MOT Switch disconnector fuse |
| Brand | ABB |
| Categories |
Fuse Switch Disconnectors
|
| Country of origin | BG |
| Harmonized System Code | 8536 5019 00 |
| Rated permanent current Iu | 400 A |
| Number of poles | 4 |
| Degree of protection (IP), front side | IP41 |
| Suitable for fuses | NH2 |
| Version as main switch | Yes |
| Version as safety switch | No |
| Max. rated operation voltage Ue AC | 500 V |
Packing details
| Packing level 1 | 3800161651328 |
Other Technical data
| Cable entry | Side |
| Conditioned rated short-circuit current Iq | 55 kA |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Bolt connection |
| Version as emergency stop installation | No |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for busbar mounting | Yes |
| With error protection | No |
| Motor drive optional | Yes |
| Position control element | Front side |
| Equipped with connectors | No |
Downloads
Description
SlimLine XRG - Vierpoliger Sicherungslasttrennschalter, horizontal, der Größe NH2, für 50mm Sammelschienenabstand und 10mm Sammelschienendicke, mit Motor
