XREEL310 4xSSD68 25m3G2.5H07 K2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL310 4xSSD68 25m3G2.5H07 K2
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	2.5 mm²
Cable assembly	H07RN-F
With adjustment	Yes
Number of socket outlets with protective contact (type F)	4
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP54
With mounting frame	Yes
With thermal protection	Yes
Type of mains connection	Protective contact (type F)

Packing details

Packing level 1

9003399338304

Downloads

Product data sheet

Description

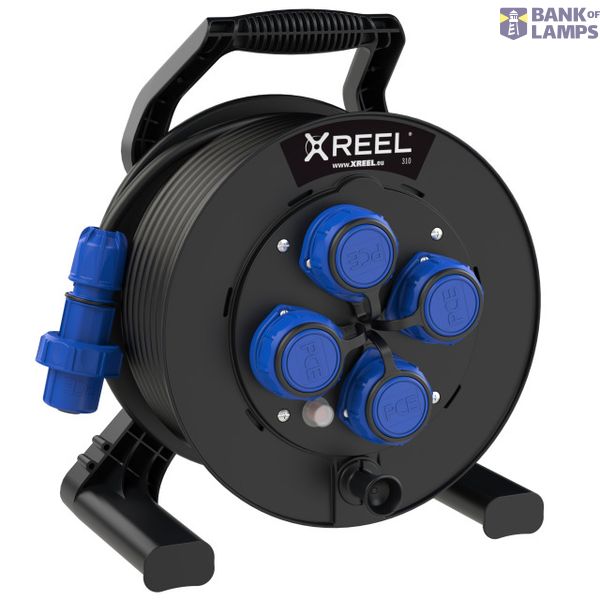

Cable Reel XREEL310
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle
Central Plate with 4 pcs watertight sockets national version (20351-9b)
Rated operating voltage: 250V
Rated current: 16A
Protection rating: IP68
25m Black cable H07RN-F 3G2.5mm2
Nautilus plug watertight IP68 blue (20051-b)
XREEL310 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
acc standard IEC/EN 61242
Protection rating complete system: IP54
Conform with BGI608 K2
