XREEL310 4xSSD54+L 40m3G2.5H07 PS30 K2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL310 4xSSD54+L 40m3G2.5H07 PS30 K2
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000003
Rated current	16 A
Rated voltage	230 V
Number of poles	3
Rated fault current	0.03 A
Leakage current type	Other
Frequency	50 Hz

Packing details

Packing level 1

9003399328510

Other Technical data

Mounting method	Other
Degree of protection (IP)	IP54

Downloads

Others Product data sheet

Description

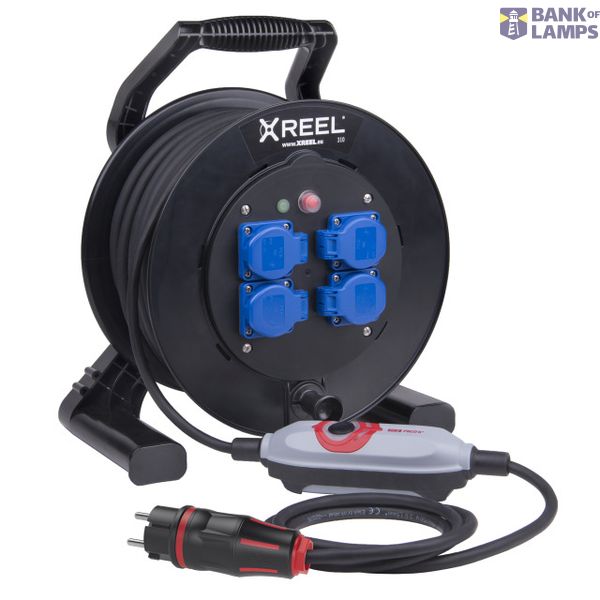

Cable Reel XREEL310
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle
Central plate with 4 pcs safety machine sockets national version with self-closing hinged lids and sealing edge (105-0bsw)
Rated operating voltage: 250V
Rated current: 16A
Protection rating: IP54
1 pcs power supply light
40m Black cable H07RN-F 3G2.5mm2
TopTaurus2 safety plug 16A 2p+PE 2SL 250V IP54 (05721-sr)
Cable reel installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
acc standard IEC/EN 61242
Protection rating complete system: IP54
Conform with BGI608 K2
