XREEL250 4xSSD20 25m3G1.5H05V GS1

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL250 4xSSD20 25m3G1.5H05V GS1
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	1.5 mm²
Cable assembly	H05VV-F
With adjustment	Yes
Number of socket outlets with protective contact (type F)	4
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP20
With mounting frame	Yes
With thermal protection	Yes
Type of mains connection	Protective contact (type F)

Packing details

Packing level 1

9003399405884

Downloads

Product data sheet

Description

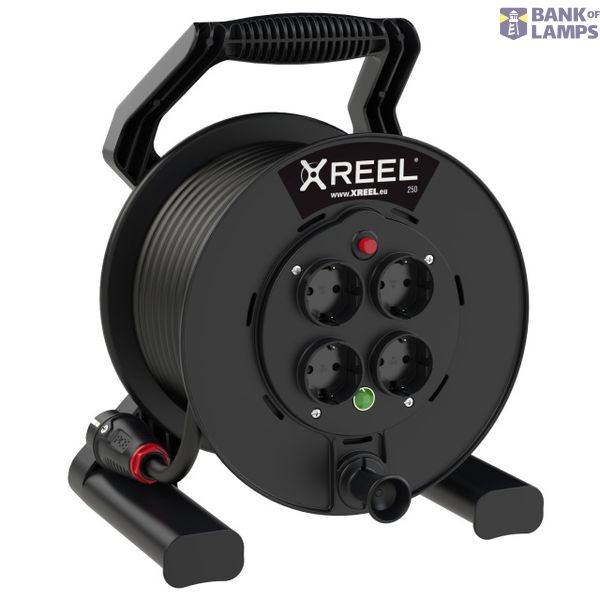

Cable Reel XREEL250
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle and
2 parking positions for the plug
Central plate with 4 pcs safety sockets national version with shutter
Rated operating voltage: 250V
Rated current: 16A
Protection rating: IP20
1 pcs thermal circuit breaker
1 pcs power supply light (green)
25m Black cable H05VV-F 3G1.5mm2
Taurus2 rubber plug 16A 2p+PE 250V IP54 (0511-sr)
XREEL250 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
Standard: IEC / EN 61242
