XREEL250 3xSSDbrit54 25m3G1.5H07 BS

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL250 3xSSDbrit54 25m3G1.5H07 BS
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	1.5 mm²
Cable assembly	H07RN-F
With adjustment	Yes
Number of socket outlets with protective contact (type F)	3
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP32
With mounting frame	Yes
With thermal protection	Yes
Type of mains connection	Other

Packing details

Packing level 1

9003399286315

Downloads

Product data sheet

Description

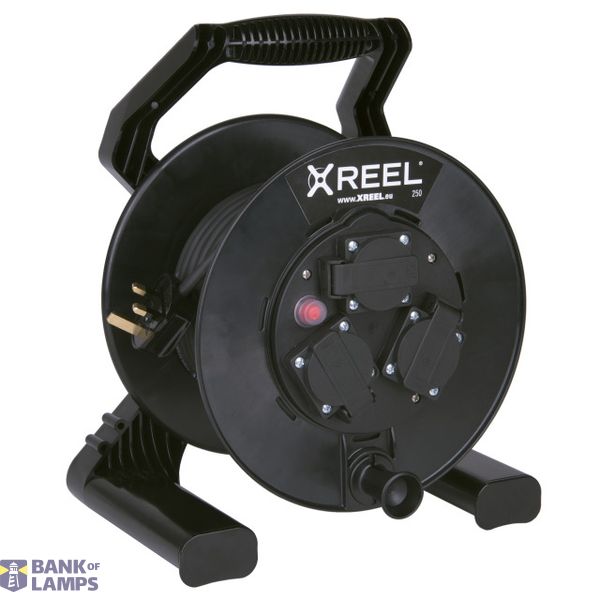

Cable Reel XREEL250
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle
Central plate with 3 pcs safety machine sockets british version with self-closing hinged lid (1020-5s)
Rated operating voltage: 230V
Rated current: 13A
Protection rating: IP54
1 pcs thermal circuit breaker
25m Black cable H07RN-F 3G1.5mm2
Plug british system 13A (00200)
XREEL250 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
acc standard IEC/EN 61242
Protection rating complete system: IP32
