XREEL250 3xSSDbf54 25m3G1.5H07 VGS2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL250 3xSSDbf54 25m3G1.5H07 VGS2
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	1.5 mm²
Cable assembly	H07RN-F
With adjustment	Yes
Number of socket outlets with protective contact (type F)	3
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP54
With mounting frame	Yes
With thermal protection	Yes
Type of mains connection	Protective contact (type F)

Packing details

Packing level 1

9003399405877

Downloads

Product data sheet

Description

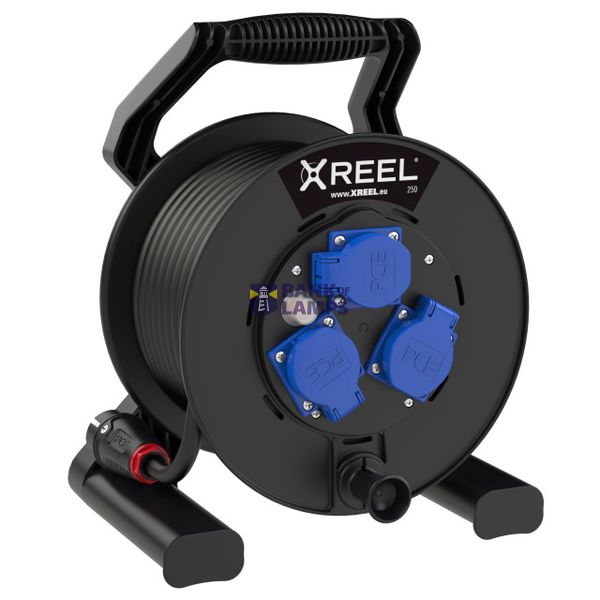

Cable Reel XREEL250
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle and
2 parking positions for the plug
Central plate with 3 pcs safety sockets belg./french version with self-closing hinged lids and shutter (1040-0bsc)
Rated operating voltage: 250V
Rated current: 16A
Protection rating: IP54
1 pcs thermal circuit breaker
1 pcs power supply light (green)
25m Yellow cable N07V3V3-F 3G1.5mm2
Taurus2 solid rubber plug 16A 2p+PE 2SL 250V IP54 (0522-sr)
XREEL250 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
Standard: IEC / EN 61242
