XREEL250 3xSSD54k 25m3G1.5PUR VGS2 K2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL250 3xSSD54k 25m3G1.5PUR VGS2 K2
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	1.5 mm²
Cable assembly	H07BQ-F
With adjustment	Yes
Number of socket outlets with protective contact (type F)	3
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP54
With mounting frame	Yes
With thermal protection	Yes
Type of mains connection	Protective contact (type F)

Packing details

Packing level 1

9003399295393

Downloads

Product data sheet

Description

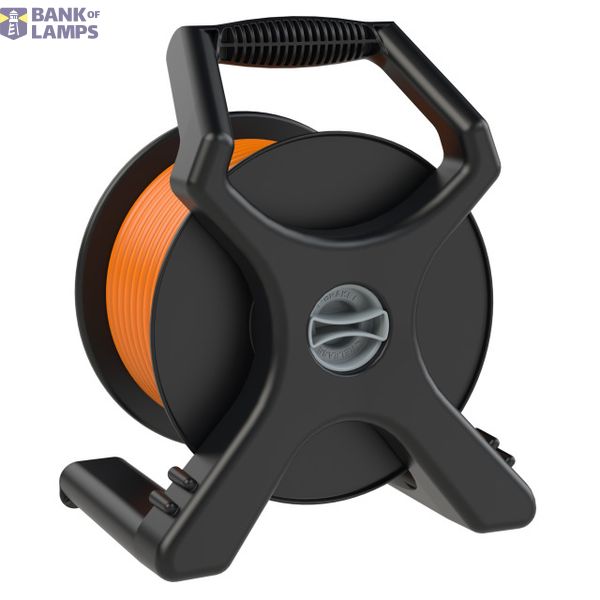

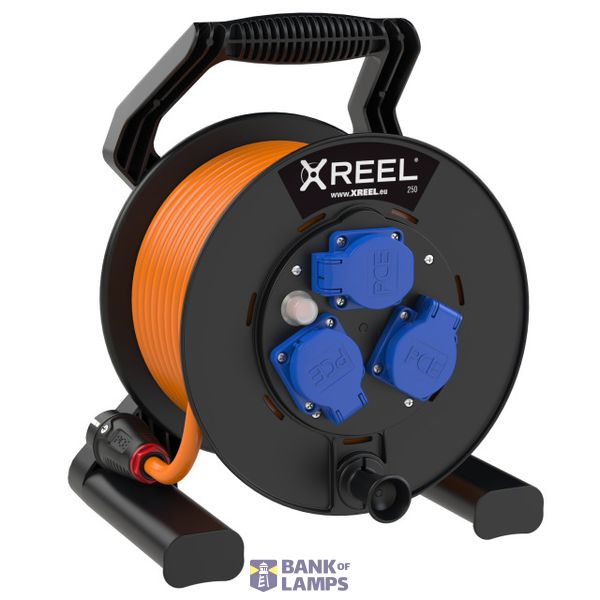

Cable Reel XREEL250
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle and
2 parking positions for the plug
Central plate with 3 pcs safety machine sockets national version with self-closing hinged lids and sealing edge (105-0bsw)
Rated operating voltage: 250V
Rated current: 16A
Protection rating: IP54
1 pcs thermal circuit breaker
25m Orange cable H07BQ-F 3G1.5mm2
Taurus2 solid rubber plug 16A 2p+PE 2SL 250V IP54 (0522-sr)
XREEL250 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
Standard: IEC / EN 61242
Conform with BGI608 K2
