XREEL250 2x16/3 4h 25m3G2.5H07 16/3 4h

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	XREEL250 2x16/3 4h 25m3G2.5H07 16/3 4h
Brand	PCE
Harmonized System Code	8544 4290 00
ETIM	EC000191
Colour	Black
Core cross section	2.5 mm²
Cable assembly	H07RN-F
With adjustment	Yes
Cable length	25 m
Housing material	Plastic
Number of cores	3
Degree of protection (IP)	IP54
With mounting frame	Yes
With thermal protection	Yes
Number of CEE socket outlets	2
Type of mains connection	CEE

Packing details

Packing level 1

9003399286247

Downloads

Product data sheet

Description

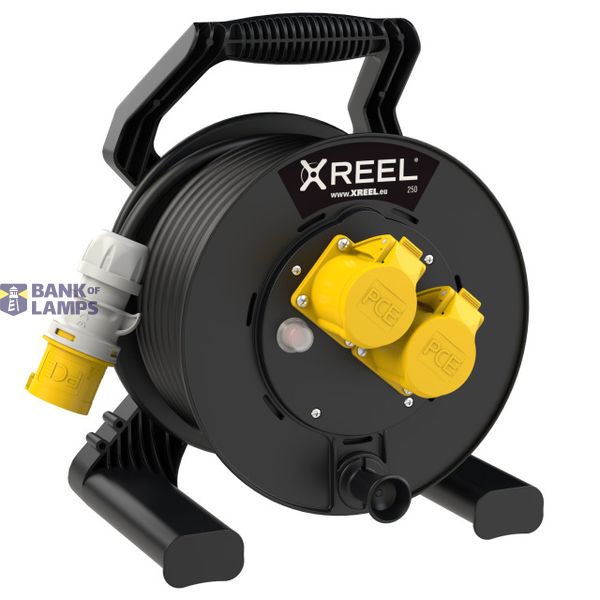

Cable Reel XREEL250
Reel (black) with central, internal locking mechanism
Protected connecting area
Solid carrying rack (black) with ergonomic handle
Central plate with 2 CEE flanged sockets straight 16/3 4h (313-4f5)
Rated operating voltage: 110V
Rated current: 16A
Protection rating: IP54
25m Black cable H07RN-F 3G2.5mm2
CEE plug 16/3 4h IP44 nickel plated (013-4v)
XREEL250 installed ready for use
complies with RoHS directive 2011/65/EU
low voltage directive NSpRl 2014/35/EU
UV stability according ISO 4892-2
acc standard IEC/EN 61316
Protection rating complete system: IP54
