  • Wtyczka przenośna GRIP IP44/54

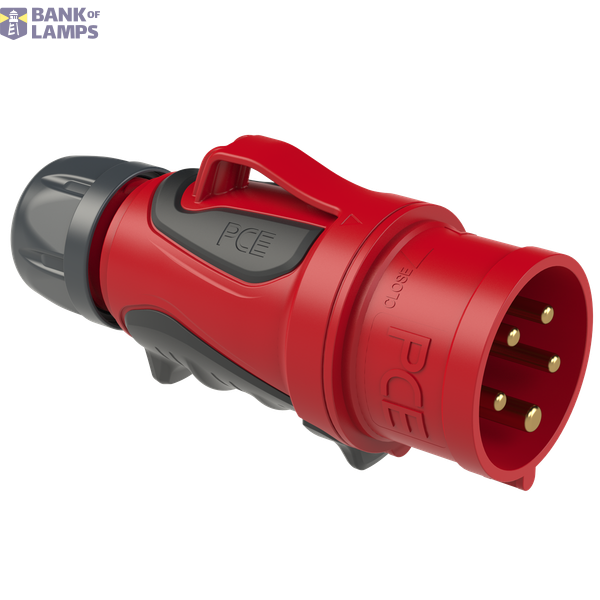

Wtyczka przenośna GRIP IP44/54 image 1
PCE

Wtyczka przenośna GRIP IP44/54

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Wtyczka przenośna GRIP IP44/54
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000140
Number of poles 5
IEC-amperage 32 A
Connection system Screwed terminal
Degree of protection (IP) IP44

Packing details

Packing level 1 5902082025283
Packing level 2 5902082025283

Other Technical data

RAL-number 3000
Cable entry Gland nut
Material Plastic
Surface treatment contacts Untreated
Amperage according to UL/CSA (for UL-version) 0 A
Angle of plug Straight
Phase inverter No
Contact material CuZn
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red

Description

32A 400V 3P+Z+N
