  • Wtyczka odbiornikowa 16A 5P 400V 6h IP44

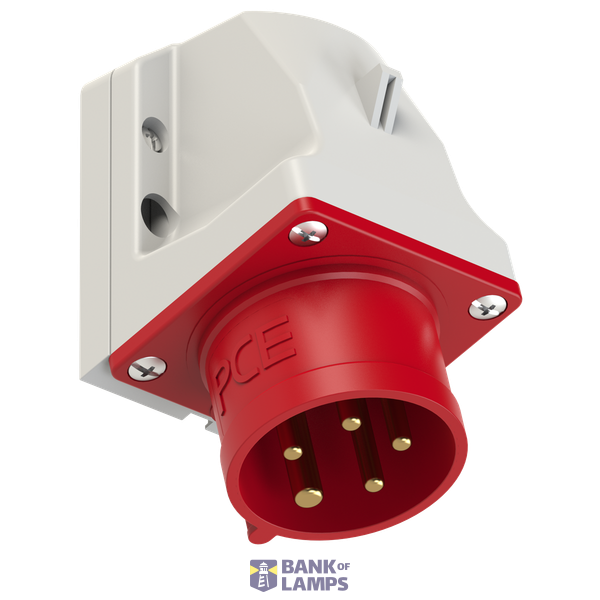

Wtyczka odbiornikowa 16A 5P 400V 6h IP44 image 1
PCE

Wtyczka odbiornikowa 16A 5P 400V 6h IP44

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Wtyczka odbiornikowa 16A 5P 400V 6h IP44
Brand PCE
Country of origin* AT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 6990 00
ETIM EC001319
Material Plastic
Surface treatment contacts Untreated
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44
Military model No
Voltage according to EN 60309-2 400 V (50+60 Hz) red

Packing details

Packing level 1 5907711100737, 5907711100737

Other Technical data

RAL-number 3000
Construction type Surface mounted plug
Number of poles 5
Angle of plug Straight
Phase inverter No
Clock hour position 6 h
Identification colour Red

Description

Wtyczka odbiornikowa 16A 3P+N+Z 400V 50/60Hz 6h IP44
