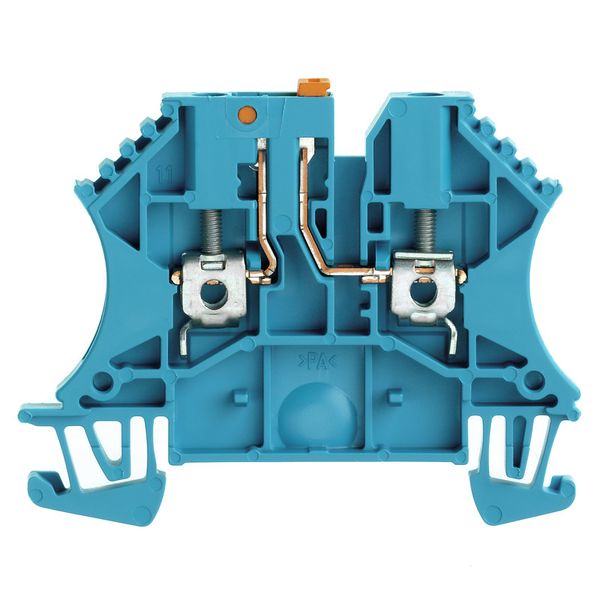

Test-disconnect terminal, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1 image 1
Weidmüller

Test-disconnect terminal, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1

Order only Minimal order quantity: 100
Price (excl. VAT):
1,71 €
This price is valid until 24.12.25
Subtotal: 171,00 € MOQ: 100
EAN: 4032248471447
MPN: 8731640000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Test-disconnect terminal, Screw connection, blue, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin RO
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 500 V
Type of electrical connection 1 Screw connection
Number of levels 1
Number of clamp positions per level 2
Internally connected stages No
Connectable conductor cross section solid-core 0.5-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-4 mm²
Connectable conductor cross section multi-wired 1.5-4 mm²
Rated current In 24 A

Packing details

Packing level 1 4032248471447

Other Technical data

Colour Blue
Width 5.1 mm
Height 60 mm
Depth 48 mm
Operating temperature -50-120 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Type of slitting Swivelling
Type of cross disconnection None
With integrated test socket No
Material insulation body Thermoplastic

Description

Terminal block for separating circuits during tests or measurements.

Accessories

Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 2, Pitch in mm (P): 5.10, Insulated: Yes, Width: 10.14 mm
Order only
Weidmüller
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 2, Pitch in mm (P): 5.10, Insulated: Yes, Width: 10.14 mm
0,367 €
This price is valid until 24.12.25
Subtotal: 18,35 € MOQ: 50
EAN: 4008190021696
MPN: 1579010000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End bracket, dark beige, TS 35, HB, Wemid, Width: 8 mm, 100 °C
Order only
Weidmüller
End bracket, dark beige, TS 35, HB, Wemid, Width: 8 mm, 100 °C
0,499 €
This price is valid until 24.12.25
Subtotal: 24,95 € MOQ: 50
EAN: 4008190030230
MPN: 1061200000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Shield bus
Order only
Weidmüller
Shield bus
0,446 €
This price is valid until 24.12.25
Subtotal: 44,60 € MOQ: 100
EAN: 4008190036454
MPN: 1056400000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 3, Pitch in mm (P): 5.10, Insulated: Yes, Width: 15.28 mm
Order only
Weidmüller
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 3, Pitch in mm (P): 5.10, Insulated: Yes, Width: 15.28 mm
0,415 €
This price is valid until 24.12.25
Subtotal: 20,75 € MOQ: 50
EAN: 4008190062392
MPN: 1579020000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End and partition plate for terminals, dark beige, Height: 56 mm, Width: 1.5 mm, V-0, Wemid
In stock
Weidmüller
End and partition plate for terminals, dark beige, Height: 56 mm, Width: 1.5 mm, V-0, Wemid
0,299 €
This price is valid until 24.12.25 or while stock lasts
Subtotal: 5,98 € MOQ: 20
EAN: 4008190079901
MPN: 1050100000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 30.7 mm
Order only
Weidmüller
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 30.7 mm
0,60 €
This price is valid until 24.12.25
Subtotal: 12,00 € MOQ: 20
EAN: 4008190081041
MPN: 1579040000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 10, Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.26 mm
Order only
Weidmüller
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 10, Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.26 mm
0,86 €
This price is valid until 24.12.25
Subtotal: 17,20 € MOQ: 20
EAN: 4008190094508
MPN: 1579050000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End plate for terminals, dark beige, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No
In stock
Weidmüller
End plate for terminals, dark beige, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No
0,193 €
This price is valid until 24.12.25 or while stock lasts
Subtotal: 9,65 € MOQ: 50
EAN: 4008190103149
MPN: 1050000000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End plate for terminals, blue, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No
Order only
Weidmüller
End plate for terminals, blue, Height: 56 mm, Width: 1.5 mm, V-0, Wemid, Snap-on: No
0,222 €
This price is valid until 24.12.25
Subtotal: 11,10 € MOQ: 50
EAN: 4008190136611
MPN: 1050080000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 4, Pitch in mm (P): 5.10, Insulated: Yes, Width: 20.42 mm
Order only
Weidmüller
Cross-connector (terminal), when screwed in, black, 24 A, Number of poles: 4, Pitch in mm (P): 5.10, Insulated: Yes, Width: 20.42 mm
0,483 €
This price is valid until 24.12.25
Subtotal: 24,15 € MOQ: 50
EAN: 4008190185046
MPN: 1579030000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
