WT120CG3 40S/840 PSD L600 (CT à 9 C62)
Order only
EAN: 8721103359902
MPN: 8721103359902
Package: 1
Box: 9
Price (excl. VAT)
92,37 €
per unit
MOQ: 1
EDT to our warehouse: 3-4 weeks
Price valid until 01.01.99 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | WT120CG3 40S/840 PSD L600 (CT à 9 C62) |
| Brand | PHILIPS |
| Categories |
Wall and ceiling luminaires
Ceiling lighting Surface mounted lighting |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1140 00 |
| ETIM | EC002892 |

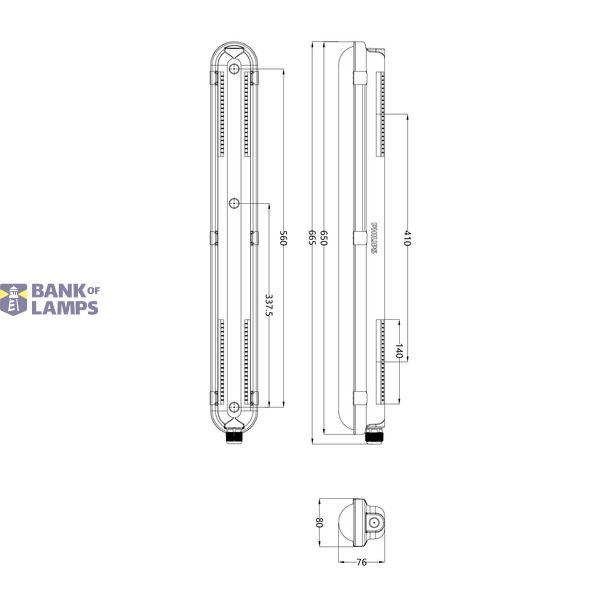

| Width | 80 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 665 mm |
| Height/depth | 76 mm |

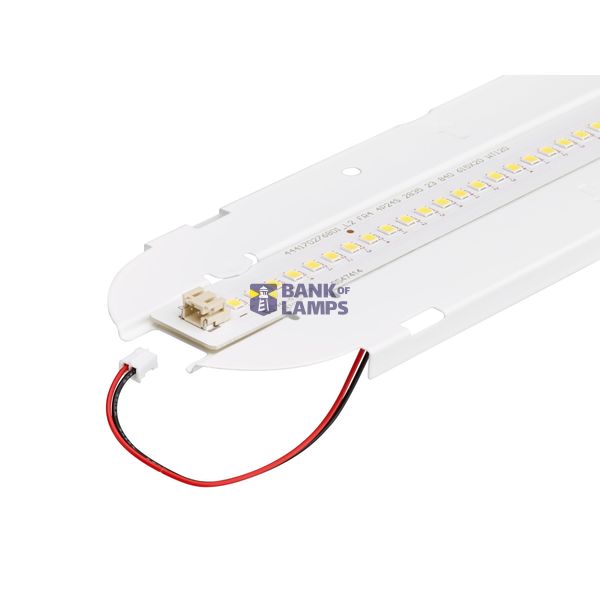

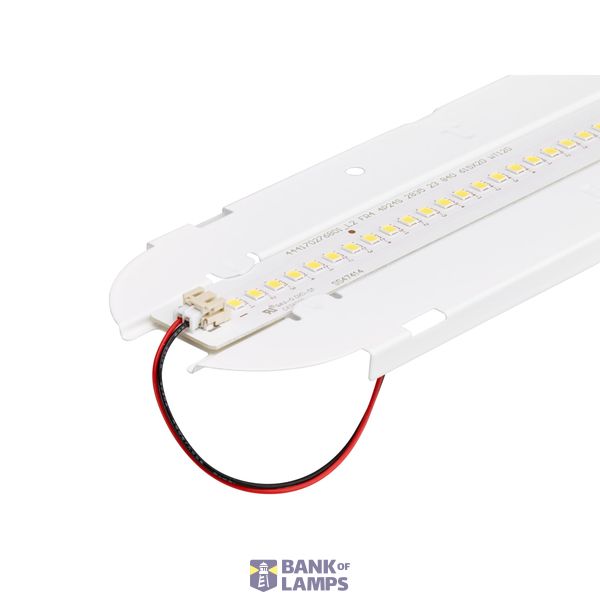

| Lamp type | LED exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |

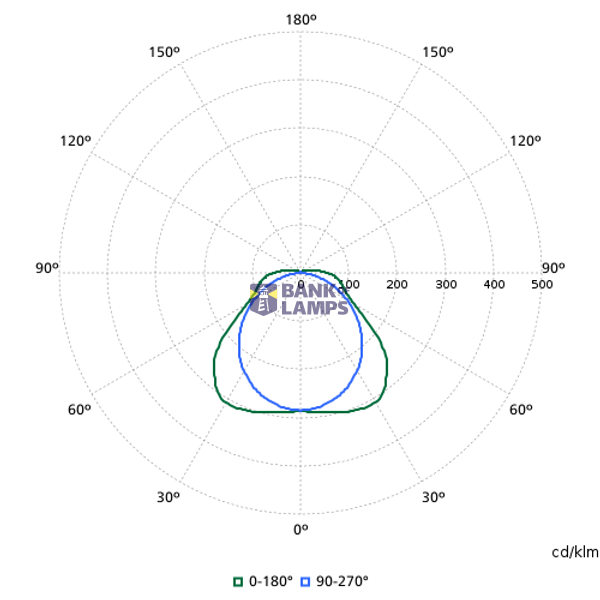

| Beam angle | Open beam/diffuse |
| Colour temperature | 4000 K |
| Max. system power | 25 W |
Packing details
| Packing level 1 | 8721103359902 |
| Packing level 2 | 8721103348852 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |

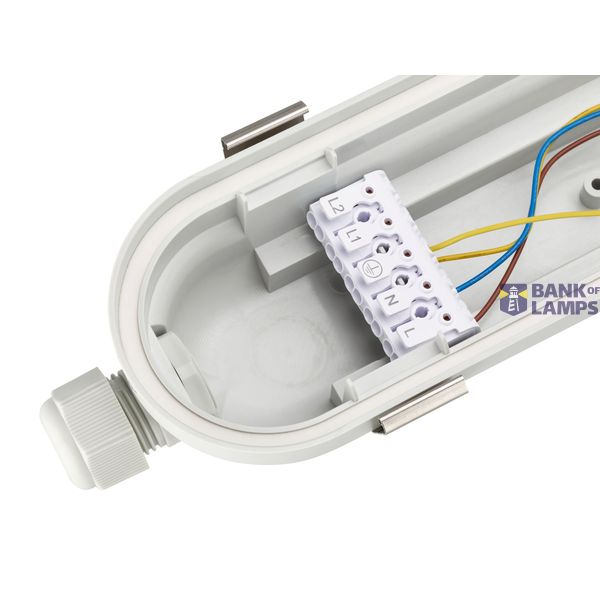

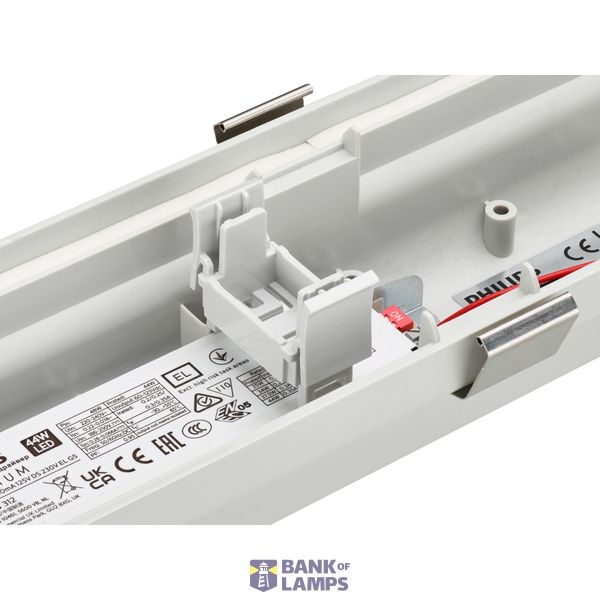

| Connection type | Push-in clamp |
| Voltage type | AC/DC |
| With movement sensor | No |
| Type of grid | None |

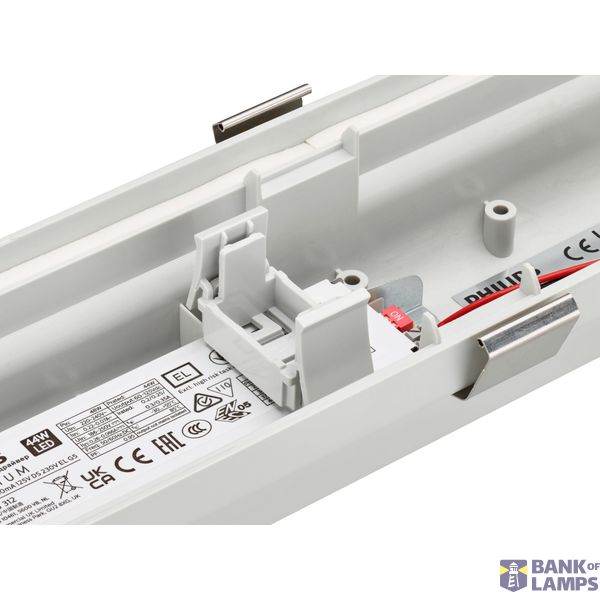

| Type of control gear | LED operating device current-controlled |
| With light sensor | No |

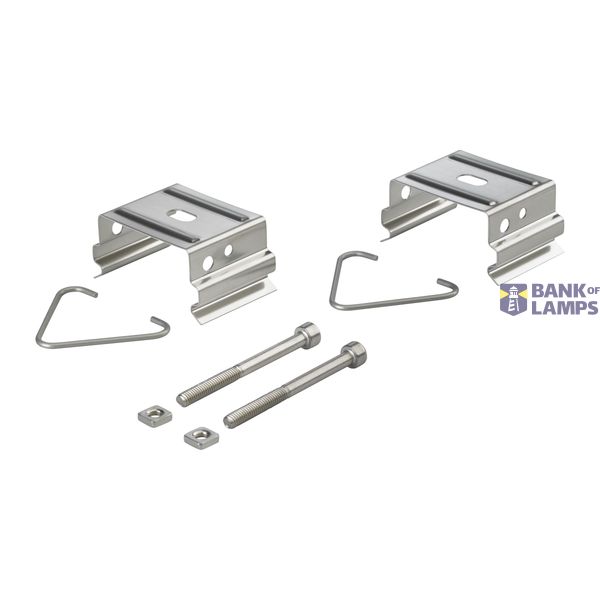

| Suitable for suspended mounting | Yes |
| Number of poles | 5 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | Yes |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Nominal current | 120 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |

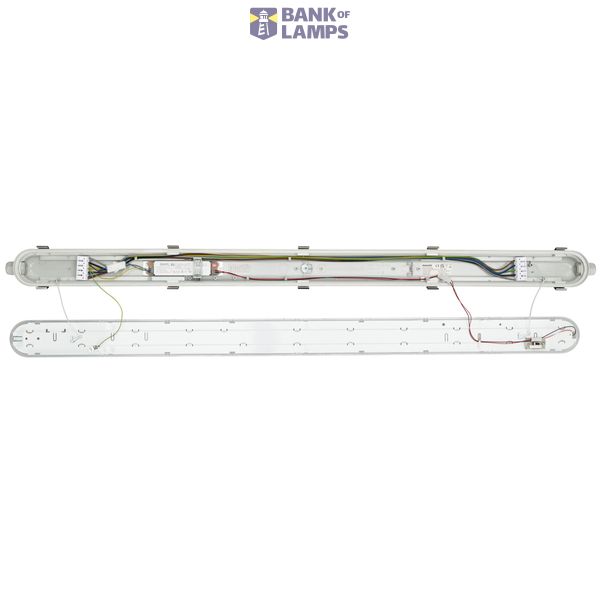

| Type of wiring | Suitable for through wiring |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | 25 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 28 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 37 |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5 % |
| Dimming DALI-2 | Yes |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
| Power factor | 0.9 |
Downloads
Declaration EPD (Environmental Product Declaration)
Luminaria data
Mounting instruction
Product data sheet
Others
Description

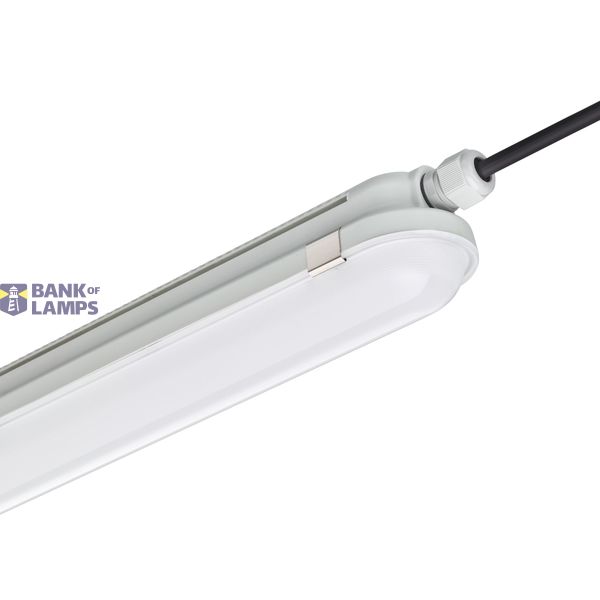

CoreLine waterdicht gen3 L600 mm, Polycarbonaat, Grijs, Voedingsunit met DALI-interface, 4000 lm, 25 W, 160 lm/W, 4000 K, (0.38, 0.37) SDCM
