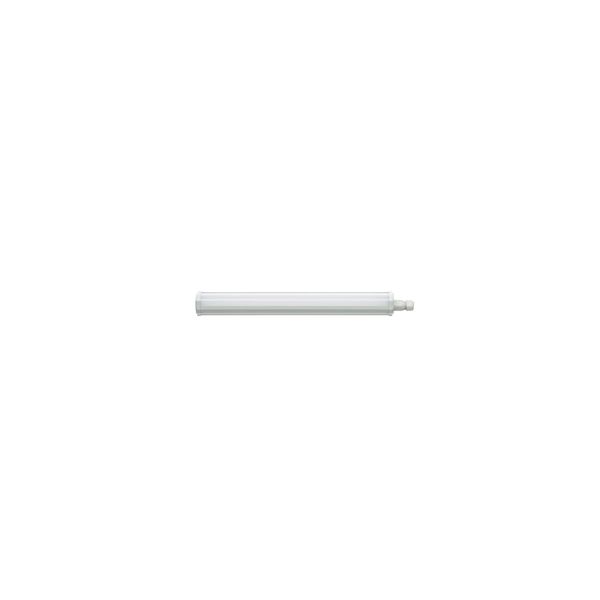

WT060C LED18S/840 PSU L600
In stock: Yes
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
15,80 €
per pcs
Split box: 10,00 €
EAN: 8710163360072
MPN: 911401876480
Package: 1
Box: 12
Pallet: 240
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | WT060C LED18S/840 PSU L600 |
| Brand | PHILIPS |
| Categories |
3Proofs
Ceiling mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9405 4231 00 |
| Width | 69 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 611 mm |
| Height/depth | 59 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 15 W |
| Rated luminous flux according to IEC 62722-2-1 | 1800 lm |
| Luminaire efficacy | 120 lm/W |
Packing details
| Packing level 1 | 8710163360072 |
| Packing level 2 | 8710163360072 |
| Packing level 3 | 8710163360072 |
Other Technical data
| Protection class | II |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Number of poles | 2 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Indirect |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for wall mounting | No |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 70 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Total harmonic distortion | 20 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-45 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | None |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 26 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 24 |
| Max. number of luminaires per miniature circuit breaker B16 | 15 |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 1.6 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
| Power factor | 0.9 |
Downloads
Description
This component is a mains voltage halogen lamp designed to provide precision lighting in compact, directional systems. It operates on standard 230V power and features a built-in reflector for focused light distribution, making it suitable for spot or accent lighting applications.
### Physical Specifications
- Dimensions: Compact form factor with an overall length of approximately 57mm.
- Connection type: GU10 bayonet cap base, compatible with most modern lamp housings.
- Construction material: Glass envelope; aluminum-coated reflector for thermal management and beam shaping.
### Electrical & Performance Characteristics
- Voltage rating: 230V AC mains input.
- Power output: Rated at 50W nominal load. Thermal handling must be considered during installation due to heat emissions at full power usage.
- Beam angle: Approximate spread of 35°, optimized for concentrated spotlighting tasks in residential or commercial settings.
- Dimming capability: Fully dimmable when used with compatible phase-cut dimmers—no integrated driver required between fixture and supply line.
### Technical Notes & Limitations
- Lamp life expectancy ranges between 2000–3000 hours depending on operating conditions.
- This product runs hot; ensure adequate cooling/ventilation around fixtures.
- Not suitable for use in enclosed fittings without sufficient airflow provisions.
- Ambient temperature should remain within operating limits (min -20°C / max +40°C).
