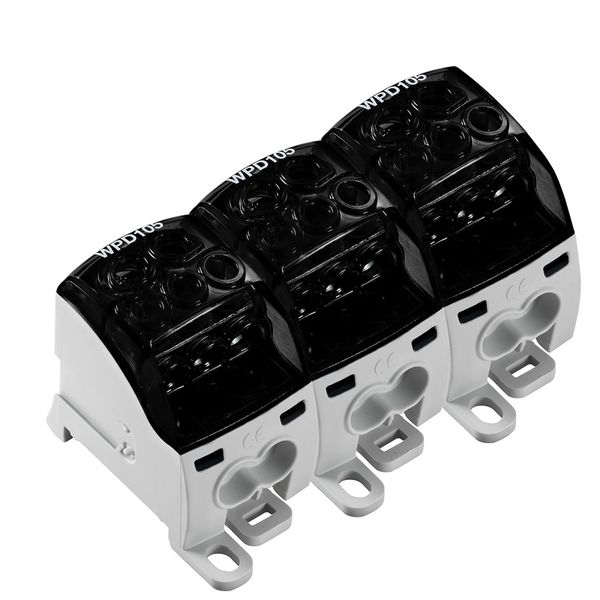

Potential distributor terminal, Screw connection, black, 35 mm², 214 A, 1000 V, Number of connections: 18, Number of levels: 1

Name: Potential distributor terminal, Screw connection, black, 35 mm², 214 A, 1000 V, Number of connections: 18, Number of levels: 1
Brand: Weidmüller
Price: 87.520 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

87,52 €

This price is valid until 31.12.25

EAN: 4050118796155

MPN: 2725430000

Box: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Potential distributor terminal, Screw connection, black, 35 mm², 214 A, 1000 V, Number of connections: 18, Number of levels: 1
Brand	Weidmüller
Categories	DIN Rail Terminal Blocks
Country of origin	DE
Harmonized System Code	8536 9010 00
Mounting method	Direct mounting
Rated voltage	1000 V
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	6
Rated current In	214 A

Packing details

Packing level 1

4050118796155

Other Technical data

Colour	Black
Width	106.8 mm
Height	70 mm
Depth	53.7 mm
Operating temperature	-50-130 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Internally connected stages	Yes
Material insulation body	Thermoplastic
