Technical Information
| Item condition |
New |
| Manufacture name |
Woningbouwfunkdimontvanger |
| Brand |
Peha by Honeywell
|
| Country of origin* |
DE |
|
* The actual country of origin may differ depending on the delivery batch.
To confirm the specific country of origin, please contact your account manager.
|
| Harmonized System Code |
8533 4090 00
|
| ETIM |
EC001094
|
| Mounting method |
Other |
| Model |
Dimming actuator |
| Number of outputs |
1 |
| Bus system KNX |
No |
| Bus system radio frequent |
Yes |
| Bus system Powernet |
No |
| Substation input |
No |
Packing details
| Packing level 1 |
4010105339611 |
Other Technical data
| Frequency |
868.3 Hz |
| With bus connection |
No |
| Type of load |
Capacitive |
| Voltage |
230 V |
| Bus system LON |
No |
| Parallel-service possible |
Yes |
| Local operation/hand operation |
No |
| Output power |
60-210 W |
| Degree of protection (IP) |
IP20 |
| With LED indication |
Yes |
| Power boost suitable |
No |
| Bus system KNX radio |
No |
Downloads
Description

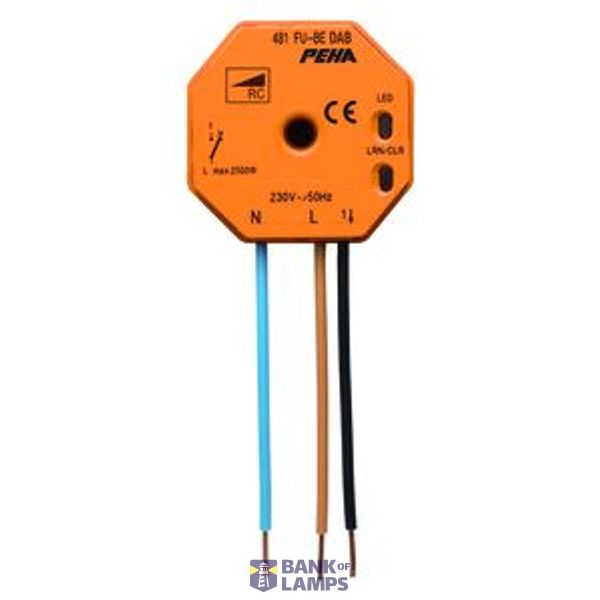

Woningbouwfunk-plafond-dimontvanger, 1-kanaals1-kanaals-dimmodule, voor 2-toetsbediening,met de functie AAN/UIT/DIMMEN met memory.Fase-afnijdingsdimmer voor laagvolt-halogeenlampen metelektronische transformatoren, gloeilampen, hoogvolthalogeenlampenen andere ohmse verbruikers.Aansluitgegevens: min. 60 W tot max. 210 W.Behuizingshoogte 27 mm, met schroefhaakgat, IP 20,met aansluitdraden, 230 V~, 50 Hz,nulleiding noodzakelijk.Er kunnen 20 zenders aangeleerd worden.
