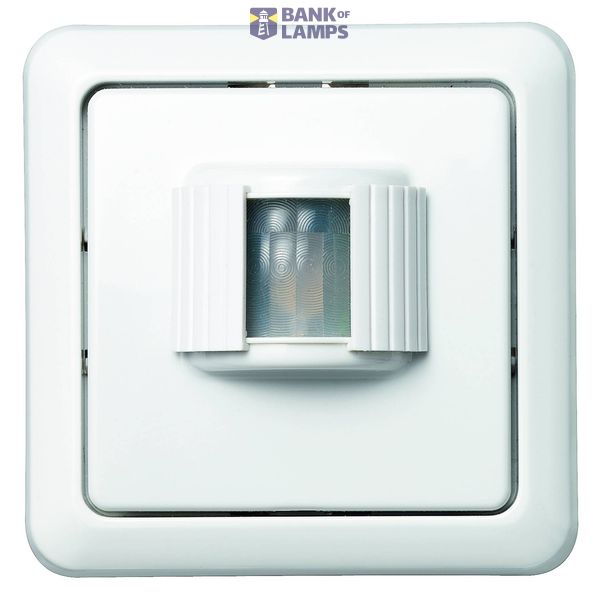

Wireless motion detector indoor
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Wireless motion detector indoor |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8531 1030 00 |
| ETIM | EC000133 |
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| Width | 80 mm |
| Model | Movement sensor |
| Height | 80 mm |
| Depth | 27 mm |
| Connection type | Other |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 7 m |
| Max. transmission range sideways | 7 m |
| Max. switching power | 3500 W |
| Scan angle | 80 ° |
| Degree of protection (IP) | IP20 |
| Min. switch-on time | 600 s |
| Max. duty cycle | 0 min |
| Max. presence range | 0 m² |
| Max. switching power LED | 3500 W |
| Sensor type | High frequency |
Packing details
| Packing level 1 | 4024163143066 |
Other Technical data
| Surface protection | Other |
| Creep-under protection | No |
| Voltage type | DC |
| Switching-on delay | 0 s |
| Switch-off delay | 5 s |
| Built-in depth | 0 mm |
| With remote control | No |
| Diameter | 0 mm |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for wireless transmission | Yes |
| Material quality | Other |
| Max. starting current | 0 A |
| Material | Plastic |
| Dim function with dimmer basic element | No |
| Response value luminosity | 20 lx |
| Diameter detection range on floor | 0 m |
| Remote operation | Yes |
| HVAC-control | No |
| RAL-number (similar) | 0 |
| Control current | 0 mA |
| Teach-function for response value luminosity | No |
| Forced switch off | No |
| Built-in length | 0 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 20-80 ° |
| Suitable for wall mounting | No |
| Number of switching zones | 0 |
| With DALI interface | No |
| IFTTT support available | No |
| Forced switch on | No |
| Min. starting current | 0 A |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | No |
Description
Indoor Radio Motion Sensor with a detection distance of up to 7 meters and a detection angle of 65°.
