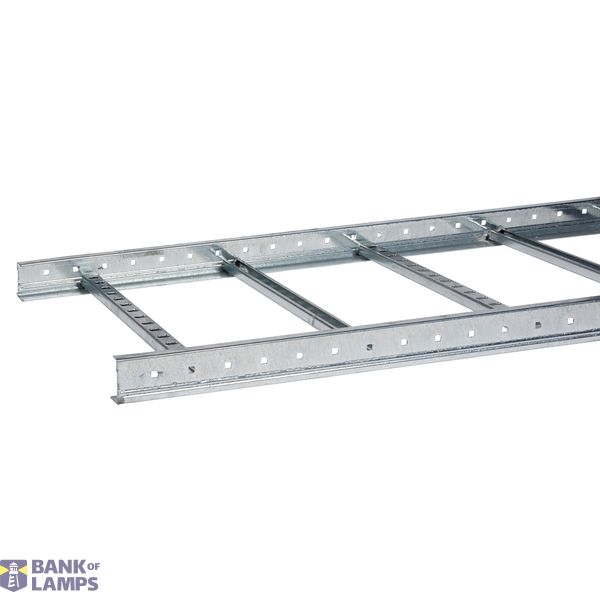

WHS 60x200 SA250 L=3m TV image 1

WHS 60x200 SA250 L=3m TV

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name WHS 60x200 SA250 L=3m TV
Brand Schneider Electric
Country of origin* NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 7308 9098 00
ETIM EC000854
Material quality Other
Material Steel
Suitable for circuit integrity No

Packing details

Packing level 1 3606480692901

Other Technical data

Width 200 mm
Height 60 mm
RAL-number 0
Weight 0 kg/m
Type of rung Perforated profile
Side wall perforation No
Length 3000 mm
Useful cross section 12000 mm²
Wide span model No
Type of side joist Profile (open)
Rung centre spacing 250 mm
Fixation rung Welded
Span between supports according to IEC 61537 0 mm
Max. safe working load according to IEC 61537 0 N/m
