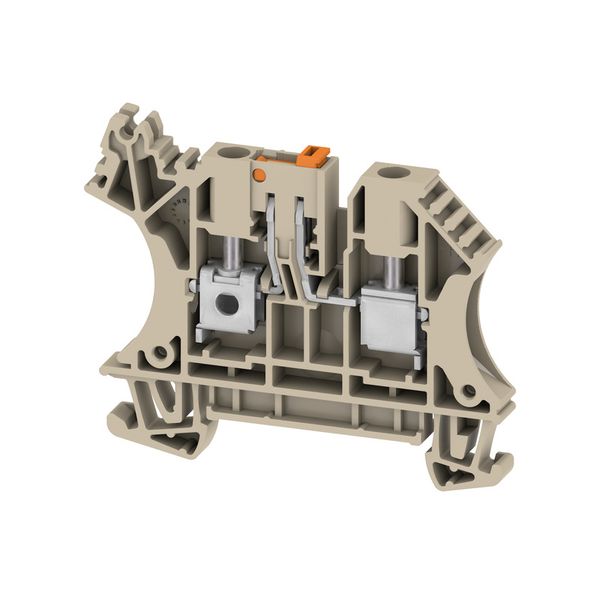

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1

Order only Minimal order quantity: 50

Price (excl. VAT):

2,00 €

This price is valid until 31.01.26

Subtotal: 100,00 € MOQ: 50

EAN: 4064675211907

MPN: 2796780000

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1
Brand	Weidmüller
Categories	DIN Rail Terminal Blocks
Country of origin	RO
Harmonized System Code	8536 9010 00
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	400 V
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-4 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-6 mm²
Connectable conductor cross section multi-wired	0.5-6 mm²
Rated current In	32 A

Packing level 1

4064675211907

Colour	Beige
Width	6.1 mm
Height	62.5 mm
Depth	50.5 mm
Operating temperature	-60-130 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
With integrated test socket	No
Material insulation body	Thermoplastic

Terminal block for separating circuits during tests or measurements.
