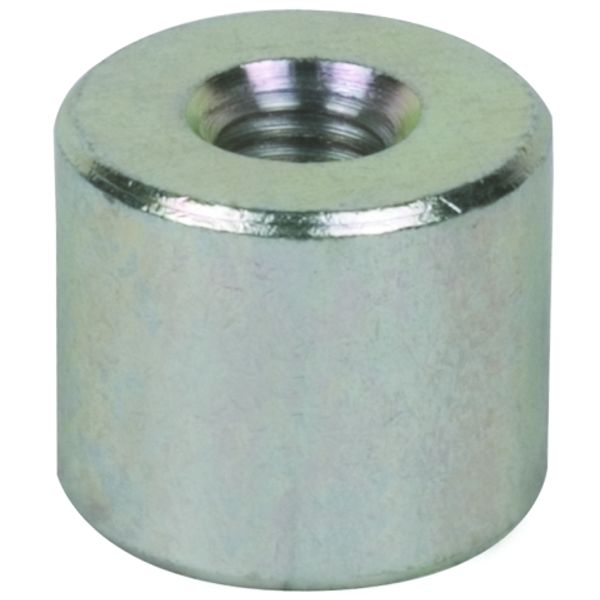

Welding-type connector, with M16 female thread St/galZn - KIT -

Order only

Price (excl. VAT):

20,30 €

This price is valid until 24.12.25

EAN: 4013364003958

MPN: 336025

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Welding-type connector, with M16 female thread St/galZn - KIT -
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin	DE
Harmonized System Code	8538 9099 00
Max. short circuit current	42 kA

Packing details

Packing level 1

4013364003958, 4013364003958

Other Technical data

Mounting method	Weldable
Construction type	Straight
Connection of the earthing and short circuit device	Internal thread
Diameter fixed point	40 mm

Downloads

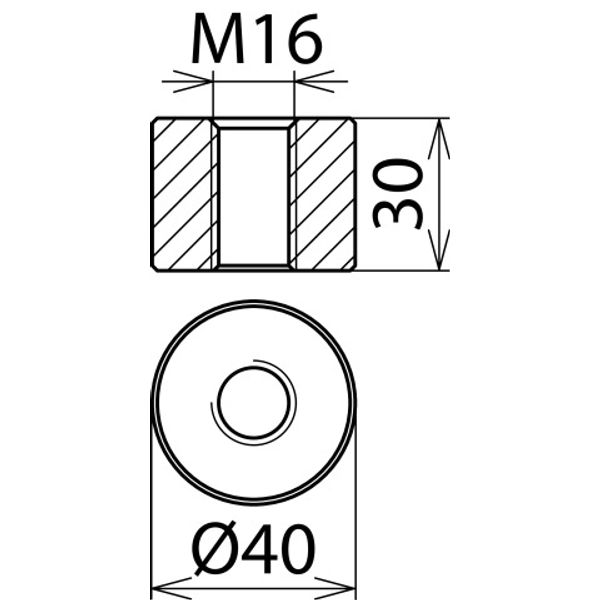

Product data sheet Dimensioned drawing

Description

Weld-on connector with female thread as connection point to the earthing system in accordance with EN/IEC 61230 (DIN VDE 0683-100). High mechanical strenght due to non-cutting shaped thread.
