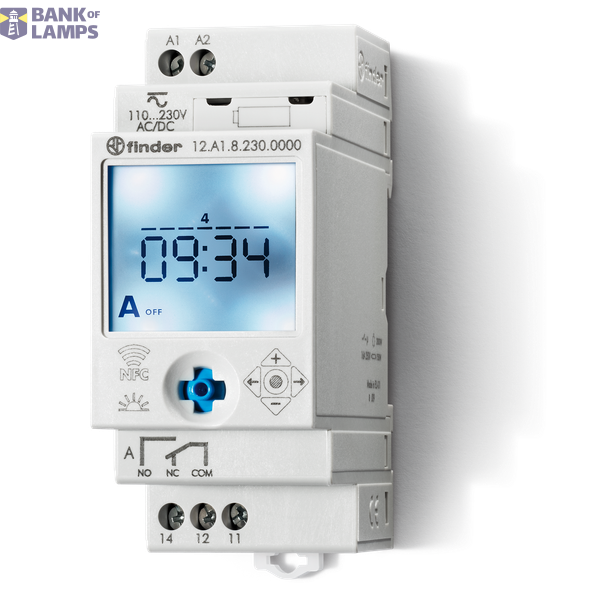

WEEKLY TIME SWITCH-ASTRO NFC 1CO

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	WEEKLY TIME SWITCH-ASTRO NFC 1CO
Brand	FINDER
ETIM	EC002305
Mounting method	DIN rail
Number of channels	1
Radio-controlled	Yes
GPS (global positioning system)	No
60 min program	Yes
Cycle program	Yes
Mains synchronous	No
Quartz controlled	Yes
Automatic switching summer-/winter time	Yes
Voltage type of supply voltage	AC/DC
External programming	Yes
Radio-controlled (DCF77)	No
Supply voltage	110-230 V
Frequency supply voltage	50-60 Hz
Nominal switching current at 250 V AC	16 A
Degree of protection (IP)	IP20

Packing details

Packing level 1

8012823416670

Other Technical data

Width	35 mm
Height	85.3 mm
Depth	56.5 mm
Number of memory locations	50
Astro program	Yes
Weekly program	Yes
Annual program	No
Width in number of modular spacings	2
24 h program	Yes
Holiday program	No
Impulse program	Yes
Suitable for manual operation	Yes
Potential free switch contact	Yes
Autonomy in years	6
Shortest switching time channel 1	1 min
Text guidance in display	Yes
Accuracy per day	1 s

Description

Astro-switch Nr.contacts: 1 Contacts configuration: CO Contact Material: AgSnO2 Mounting method: DIN rail Number of memory locations: 50 Astro program: yes Number of channels: 1 Radio-controlled: yes Weekly program: yes Annual program: no GPS (global positioning system): no Width in number of modular spacings: 2 60 min. program: yes 24 h program: yes Holiday program: no Cycle program: yes Mains synchronous: no Quartz controlled: yes Automatic switching summer-/winter time: yes Manual operation: yes Voltage type of supply voltage: AC/DC Potential free switch contact: yes External programming: yes Radio-controlled (DCF77): no Supply voltage: from 110 to 230 V. Frequency supply voltage: from 50 to 60 Hz. Autonomy in years: 6 Shortest switching time channel 1: 1 min. Nominal switching current at 250 V AC: 16 A. Text guidance in display: yes Protection category: IP20
