Weather-proof luminaires Nextrema Lens Anthracite 6W 400lm Emergency light Wide (W) IP66 IK04 3 SDCM

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

261,30 €

This price is valid until 24.12.25

EAN: 4018242290048

MPN: 6197000

Package: 1

Pallet: 171

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Weather-proof luminaires Nextrema Lens Anthracite 6W 400lm Emergency light Wide (W) IP66 IK04 3 SDCM
Brand	TRILUX
Categories	Wall and ceiling luminaires
Country of origin	ES

Packing details

Packing level 1	4018242290048, 4018242290048
Packing level 2	4018242697793

Description

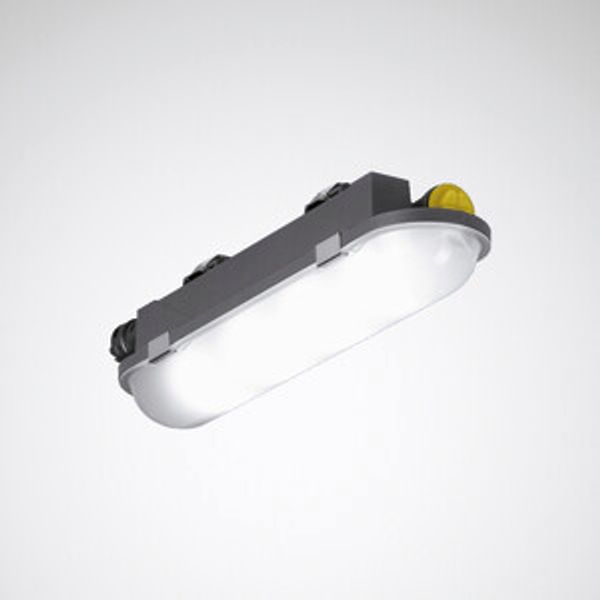

LED emergency luminaire for non-maintained light with integrated single battery system, Nominal operation time 3 hours. For damp rooms and canopied outdoor areas, cold stores, industrial facilities, utility rooms, escape tunnels, car parks, washing facilities and damp room areas of all types. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting contained within the scope of supply. Theft-proof mounting possible via theft protection, to be ordered separately. Required emergency illuminance of 1 lx is achieved with a mounting height of 4 m and in a circular periphery with radius 4.8 m near to the ground. Opal, light-scattering PC cover for especially homogeneous illumination. LED system consists of 4 mid-power LEDs. With 2 status LEDs for displaying operating and charge state. Opal, light-scattering PC cover for especially homogeneous illumination. Luminaire luminous flux 400 lm, Light colour neutral white, correlated colour temperature (CCT) 4000 K, Luminaire body of die-cast aluminium. Robust concept with vibration-resistant components. Dimensions in mm (L x W x H): 403 x 94 x 95. Permissible ambient temperature (ta): 0 °C - +35 °C. With WIELAND connection plug at face end. With electronic transformer, switchable. With integrated self-test and display of charge state. Charging time of Ni-MH battery (6 V, 1.6 Ah) with first commissioning 24 h. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
