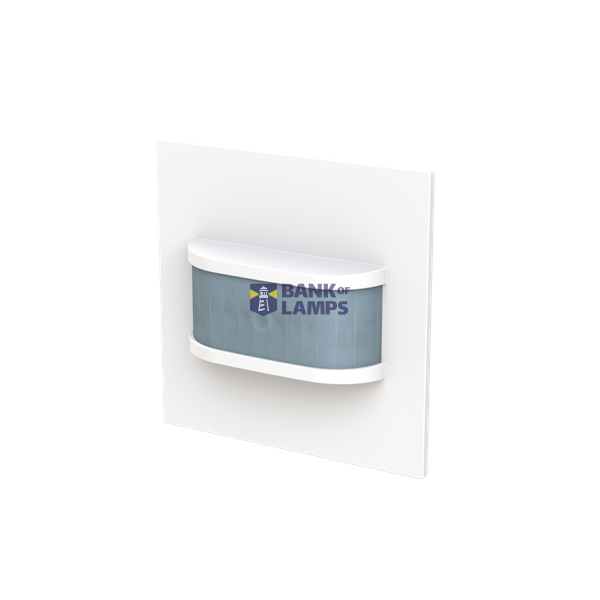

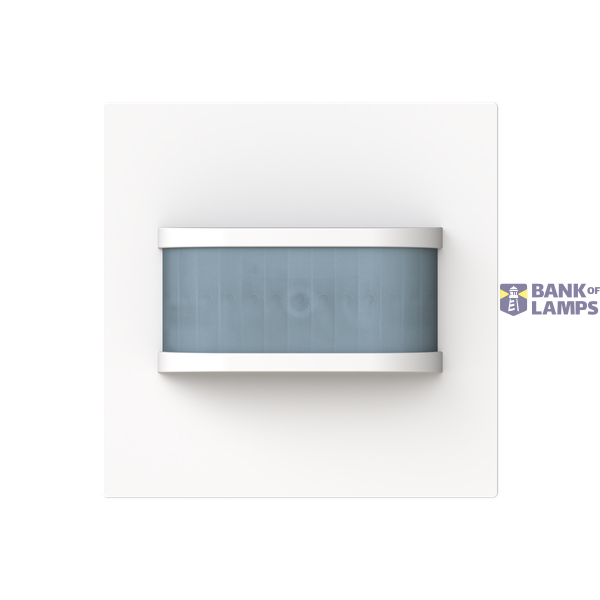

WD 180 flex comfort sensor
Order only
EAN: 4011395327753
MPN: 2CKA006800A3133
Package: 1
Price (excl. VAT)
189,55 €
per unit
MOQ: 1
EDT to our warehouse: By request
Price valid until 31.12.30 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | WD 180 flex comfort sensor |
| Brand | ABB |
| Categories |
Switches
Motion & Presence Sensors |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000138 |
| Mounting method | Other |
| Max. transmission range frontally | 12 m |
| Max. transmission range sideways | 12 m |
| Mounting height | 1.2 m |
| Detection angle horizontal | 0-180 ° |
Packing details
| Packing level 1 | 4011395327753, 4011395327753 |
Other Technical data
| Colour | White |
| Halogen free | No |
| Creep-under protection | No |
| Staircase monitoring | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | No |
| Dim function with dimmer basic element | No |
| HVAC-control | No |
| Constant light control | No |
| RAL-number (similar) | 9016 |
| Teach-function for response value luminosity | No |
| Networkable | Yes |
| Operation mode switch | Yes |
| Animal zone | Yes |
| Min. switch-on time | 10 s |
| Max. duty cycle | 30 min |
| Suitable for degree of protection (IP) | IP20 |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | No |
| With orientation lighting | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Combination movement sensor/push button switch | No |
Description
Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. ./. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U. For LED touch dimmer insert flex, 1gang, 64851 U. For extension insert flex, 64891 U. Mounting height: 22 mm.
