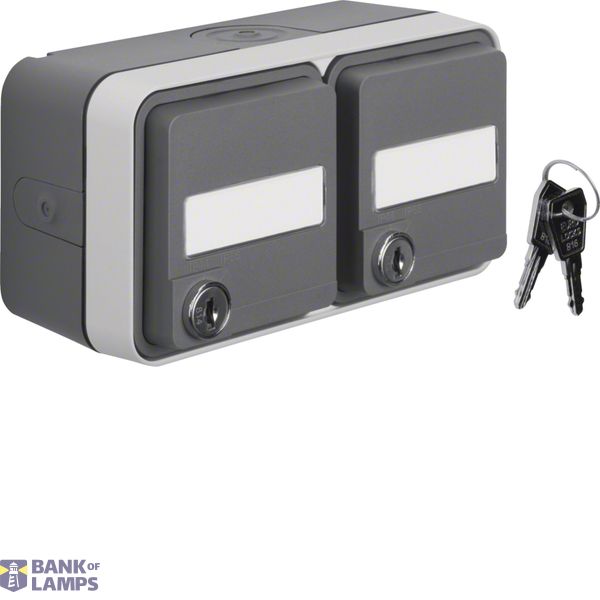

WCD key lock 2-way with housing, W.1, grey

Order only Minimal order quantity: 5

EAN: 3250610102305

MPN: WNC147

Package: 1

Price (excl. VAT)

134,38 €

per unit

MOQ: 5

EDT to our warehouse: 4-6 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	WCD key lock 2-way with housing, W.1, grey
Brand	Hager
Categories	Sockets
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 99
ETIM	EC000125
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Surface mounted (plaster)
Connection type	Push-in clamp
Suitable for degree of protection (IP)	IP55

Packing level 1

3250610102305, 3250610102305

Colour	Grey
Halogen free	Yes
Lockable	Yes
With hinged lid	Yes
Surface protection	Untreated
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
Frequency	50-60 Hz
With on/off switch	No
Label space/information surface	Yes
Eject-mechanism	No
Material quality	Thermoplastic
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Insulated mounting	Yes
Material	Plastic
Rated fault current	0 mA
Type of fastening	Mounting with screw
Imprint/indication	None
RAL-number (similar)	7011
Impact strength	IK05
Transparent	No
Surface finishing	Matt
With miniature fuse	No
With loop through function	No
Device width	147 mm
Device height	76 mm
Device depth	65 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
Number of modules (module system)	0
IFTTT support available	No
Number of active pins (round)	2
Number of active pins (flat)	0
Min. depth of built-in installation box	0 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Metallic colour	No
Anti-bacterial treatment	No
For heavy conditions according to VDE	No
