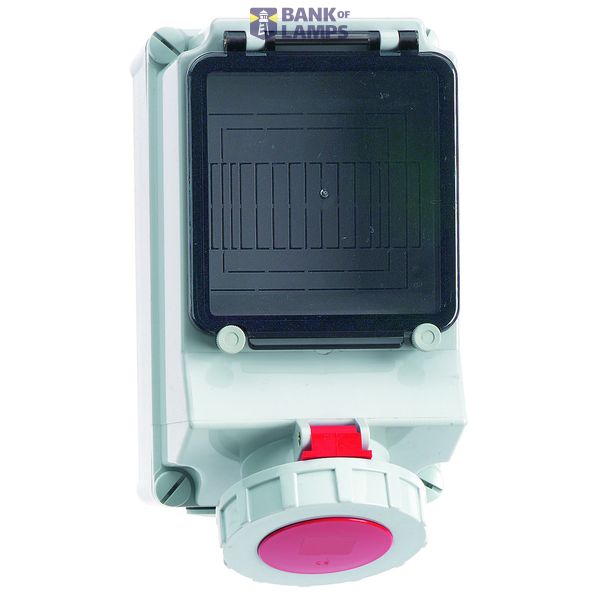

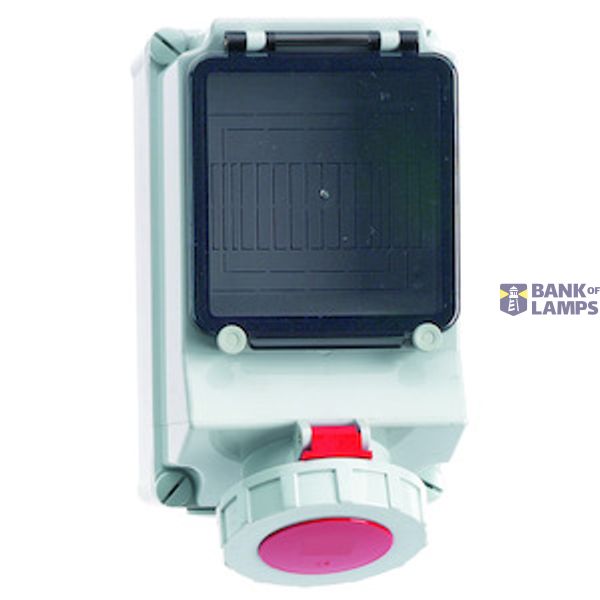

WCD 6h 63A 5P 400V IP67 260x160 G Ni
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | WCD 6h 63A 5P 400V IP67 260x160 G Ni |
| Brand | Bals |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001324 |
| Housing material | Plastic |
| IEC-amperage | 63 A |
| Type of switch | None |
| Contact material | CuZn |
| Degree of protection (IP) | IP67 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Packing details
| Packing level 1 | 4024941150019 |
Other Technical data
| Model | Base unit and cover |
| Switch | Without on/off switch |
| Protection | None |
| Number of poles | 5 |
| Surface treatment contacts | Nickel-plated |
| Empty locations on mounting rail | No |
| With earth leakage switch | No |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
Downloads
Description
- Met montagerail
- 7 module
- 63A met raamklemmen en KONTEX contact
- Vernikkelde contacten
- Beschermingsklasse IP67
- Bij 63A wandcontactdozen met Pilot graag een -P toevoegen aan het artikelnummer
- 7 module
- 63A met raamklemmen en KONTEX contact
- Vernikkelde contacten
- Beschermingsklasse IP67
- Bij 63A wandcontactdozen met Pilot graag een -P toevoegen aan het artikelnummer
