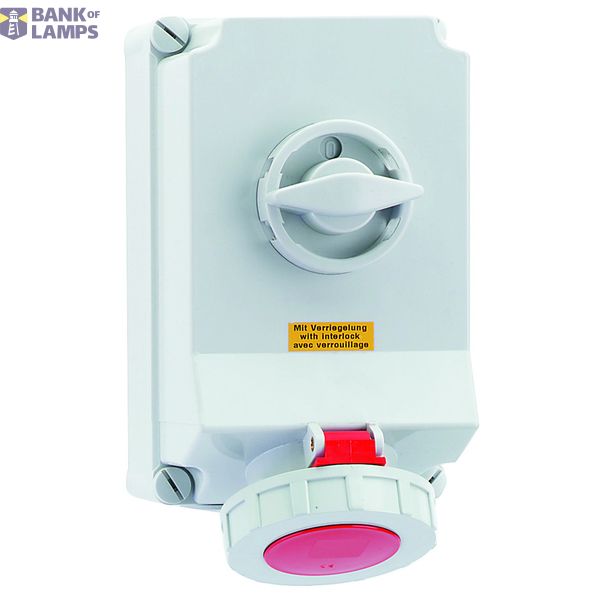

WCD 6h 63A 4P 400V IP67 260x160 TE A/V Ni image 1

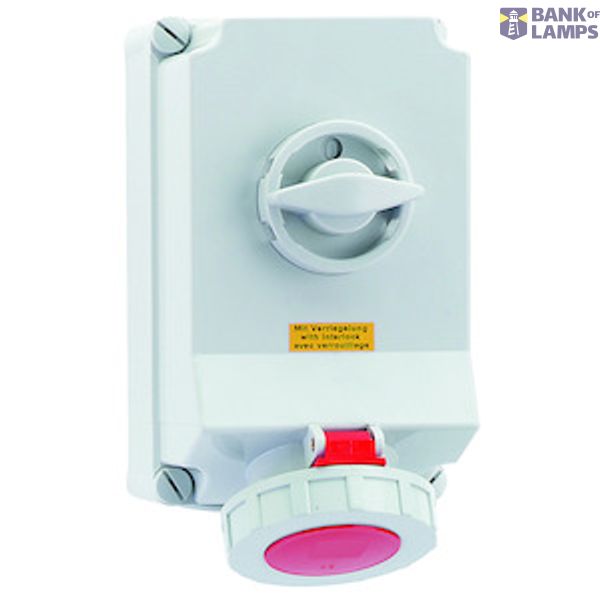

WCD 6h 63A 4P 400V IP67 260x160 TE A/V Ni image 2

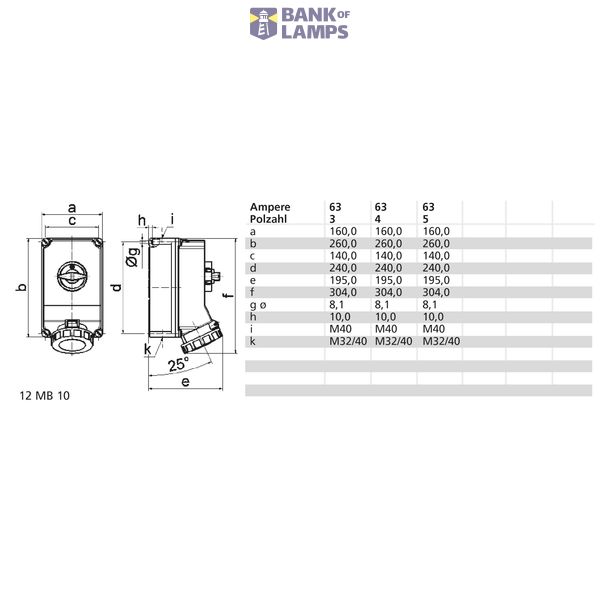

WCD 6h 63A 4P 400V IP67 260x160 TE A/V Ni image 3

WCD 6h 63A 4P 400V IP67 260x160 TE A/V Ni

Order only Not Available

Technical Information

Item condition	New
Manufacture name	WCD 6h 63A 4P 400V IP67 260x160 TE A/V Ni
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001324
Housing material	Plastic
IEC-amperage	63 A
Type of switch	Special switch
Contact material	CuZn
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	400 V (50+60 Hz) red

Packing details

Packing level 1

4024941166041

Other Technical data

Model	Base unit and cover
Switch	Mechanical locking
Protection	None
Number of poles	4
Surface treatment contacts	Nickel-plated
Empty locations on mounting rail	No
With earth leakage switch	No
Military model	No
Clock hour position	6 h
Identification colour	Red

Downloads

Others Declaration RoHS Deep link REACH

Description

- Afschakelbaar
- In 0-stand hangslot vergrendeling mogelijk
- Mechanische dubbele vergrendeling
- KONTEX contact
- Vernikkelde contacten
- Raamklemmen
- Beschermingsklasse IP67
- Bij 63A wandcontactdozen met Pilot graag een -P toevoegen aan het artikelnummer
