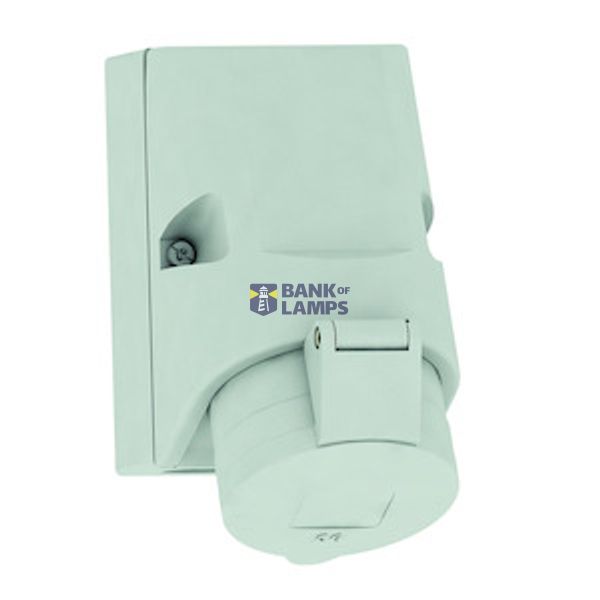

WCD 1h 16A 5P >50V IP44 126x83 Gr QC Ni image 1

WCD 1h 16A 5P >50V IP44 126x83 Gr QC Ni image 2

WCD 1h 16A 5P >50V IP44 126x83 Gr QC Ni

Order only Not Available

Technical Information

Item condition	New
Manufacture name	WCD 1h 16A 5P >50V IP44 126x83 Gr QC Ni
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001321
IEC-amperage	16 A
Connection system	Screw less terminal
Contact material	CuZn
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	>50 V grey

Packing details

Packing level 1

4024941144827, 4024941144827

Other Technical data

Model	Surface mounted (plaster)
RAL-number	7035
Cable entry	Gland nut
Number of poles	5
Insulated mounting	Yes
Material	Plastic
Type of fastening	Inner lying mounting
Surface treatment contacts	Nickel-plated
Military model	No
Clock hour position	1 h
Identification colour	Grey

Downloads

Deep link REACH Others Declaration RoHS

Description

- Schroefloze klemmen
- KONTEX contact
- Vernikkelde contacten
- Kabelinvoer één keer boven (open), één keer onder (gesloten) bij 16A 3p
- Kabelinvoer één keer boven (open), twee keer onder (gesloten) bij 16A 4p - 32A 5p
- Behuizingsbodem 180 gr draaibaar
- Beschermingsklasse IP44
