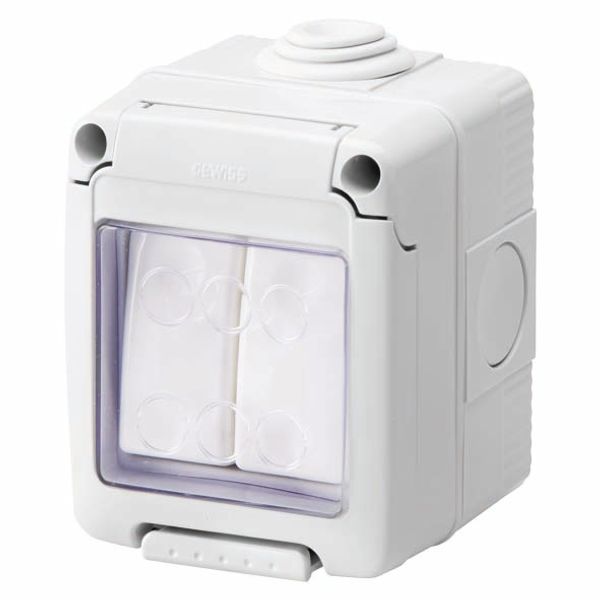

WATERTIGHT ENCLOSURE COMPLETE WITH SYSTEM DEVICES - TWO-WAY SWITCH+TWO-WAY SWITCH 1P 16AX - IP55 - GREY RAL 7035
In stock: No
Vendor stock: No
Minimal order quantity: 5
Price (excl. VAT):
8,44 €
Subtotal: 42,20 €
MOQ: 5
EAN: 8011564074613
MPN: GW27834
Package: 1
Box: 5
Pallet: 1080
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | WATERTIGHT ENCLOSURE COMPLETE WITH SYSTEM DEVICES - TWO-WAY SWITCH+TWO-WAY SWITCH 1P 16AX - IP55 - GREY RAL 7035 |
| Brand | GEWISS |
| Categories |
Switches
|
| Harmonized System Code | 8537 1098 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker/button |
| Rated current | 16 A |
| Type of fastening | Screw mounting |
| Wiring system | Off switch 1-pole |
| Impact strength | Not available |
| Suitable for degree of protection (IP) | IP55 |
Packing details
| Packing level 1 | 8011564074613 |
| Packing level 2 | 8011564074613 |
| Packing level 3 | 8011564074613 |
| Packing level 4 | 8011564074613 |
Other Technical data
| Colour | Grey |
| Halogen free | No |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Surface protection | Other |
| Built-in depth | 0 mm |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 7035 |
| Switching current for fluorescent lamps | 16 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Glossy |
| Device width | 66 mm |
| Device height | 82 mm |
| Device depth | 65 mm |
| Label space/information surface | No |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Downloads
Description
27 COMBI Range Wall-mounting enclosures and modular components - A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.
