Waterproof wall bushing for thicknesses 200-300mm StSt (316/Ti/L)

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

93,47 €

This price is valid until 24.12.25

EAN: 4013364120341

MPN: 478530

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Waterproof wall bushing for thicknesses 200-300mm StSt (316/Ti/L)
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of accessory/spare part	Bushing for roofs, walls and earthing electrodes
Material	Stainless steel V4A

Packing details

Packing level 1

4013364120341, 4013364120341

Downloads

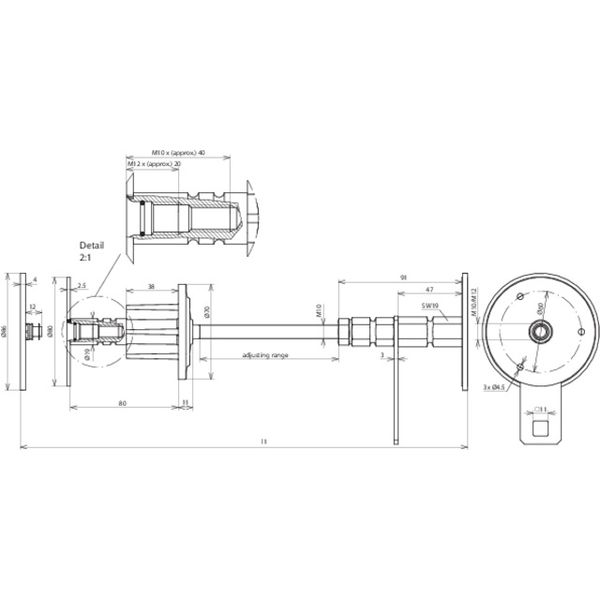

Product data sheet Dimensioned drawing Deep link REACH

Description

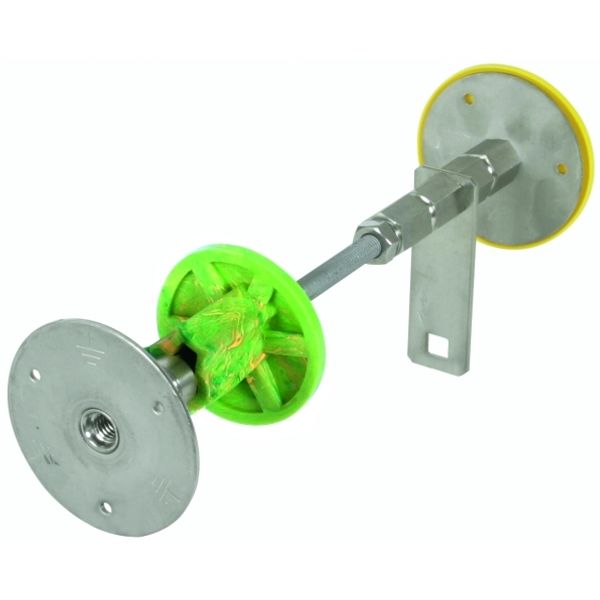

Water-pressure-tight wall bushing for white tanks, for leading the earthing conductor/equipotential bonding conductor through concrete, with adjustable M10 threaded rod. Type for formwork installation with water barrier and M10 / M12 double thread. Including terminal clamp (St/tZn, 30 x 4 mm) with square hole for connecting round conductors by means of a clamping piece or flat conductors by means of a cross unit.
