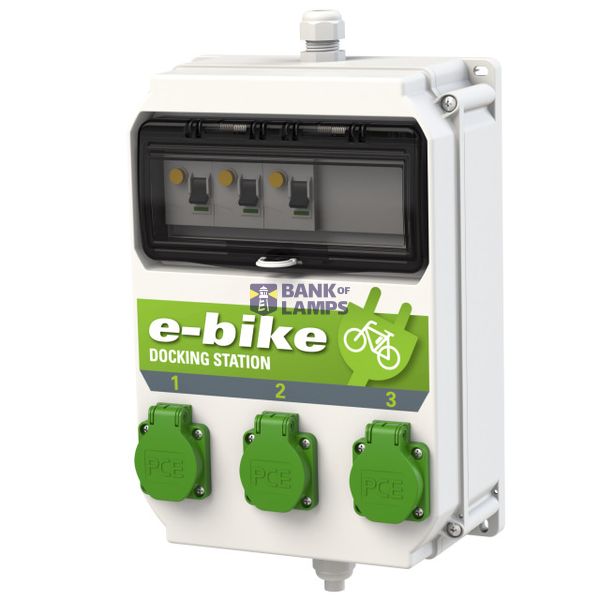

Wandverteiler Kunststoff Baureihe ANIF4 BV 3xSSDgn M20oBVu VC5p e-bike Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Wandverteiler Kunststoff Baureihe ANIF4 BV 3xSSDgn M20oBVu VC5p e-bike Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Surface treatment contacts	Nickel-plated
Handling	Wall mounting
Contact material	CuZn
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399379895

Other Technical data

Colour	Grey
Width	222 mm
Height	320 mm
Depth	114 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	3
Type of mains connection	Protective contact (type F)
Number of poles mains connection	3

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box series ANIF4 IP54 320x222x114 10TE
incl. label (e-bike DOCKINGSTATION)
1xM20 cable gland on top (cable diameter 10-14mm PG16) grey
1x cable gland M20 with blind plug on bottom
3xSK-socket 16A 250V IP54 (green) protected over 3xRCD/MCB 6A 1p+N 30mA C TYP A
RCD MCB made by Eaton ÖVE / VDE
distribution box is ready wired on vario connector 5p 10qmm
