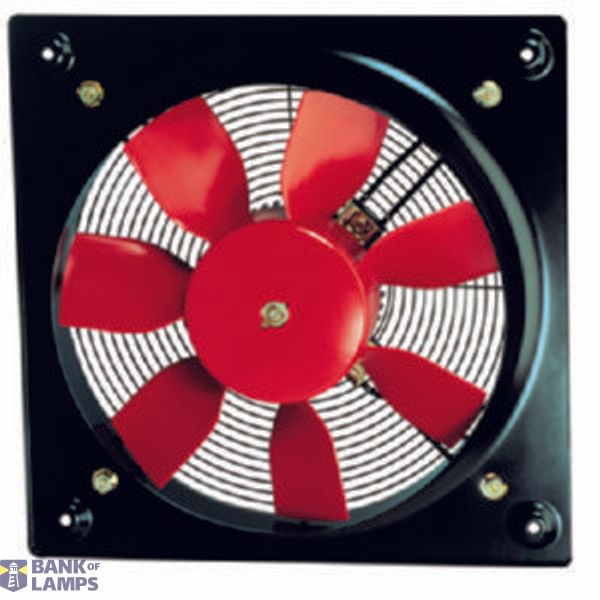

Wandaxiaalventilatoren, HCFB/4-355/H-A (220V60HZ) VZ

Name: Wandaxiaalventilatoren, HCFB/4-355/H-A (220V60HZ) VZ
Brand: S&P
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Wandaxiaalventilatoren, HCFB/4-355/H-A (220V60HZ) VZ
Brand	S&P
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8414 5925 00
ETIM	EC010883
Width	450 mm
Height	450 mm
Depth	129 mm
Housing material	Steel-treated
Operation	Mains
Connection voltage	220 V
Electrical connection	Terminals
Degree of protection (IP)	IP65
With thermal protection	Yes
Hygrostat	None
Louver	None
Air volume, unloaded	3395 m³/h
Air volume at pressure 2	3070.63 m³/h
Air volume at pressure 3	486.305 m³/h
Pressure 2	25 Pa
Pressure 3	100 Pa
Suitable for electronic control	Yes
Suitable for transformer control	Yes
Max. air temperature	70 °C
Suitable for frequency control	No
Timer	None
With non-return valve	No

Packing level 1

8413893199188
