Wallbox GLB 22kW, 5m przewód Typu2 + FI A
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Wallbox GLB 22kW, 5m przewód Typu2 + FI A |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC002883 |
| Number of earth leakage circuit breakers type A | 1 |
| Max. power per charging point | 22 kW |
| Installation side connection model | 3-phase |
Packing details
| Packing level 1 | 7331185186863 |
Other Technical data
| Mounting method | Wall mounting |
| Width | 205 mm |
| Height | 422 mm |
| Depth | 124 mm |
| With display | No |
| Housing material | Plastic |
| Nominal connection power | 22 kW |
| Impact strength | IK08 |
| Degree of protection (IP) | IP44 |
| Number of charging units | 1 |
| With house connection box | No |
| Number of socket outlets Type 2 | 1 |
| With energy meter | No |
| With circuit breaker | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Downloads
Description

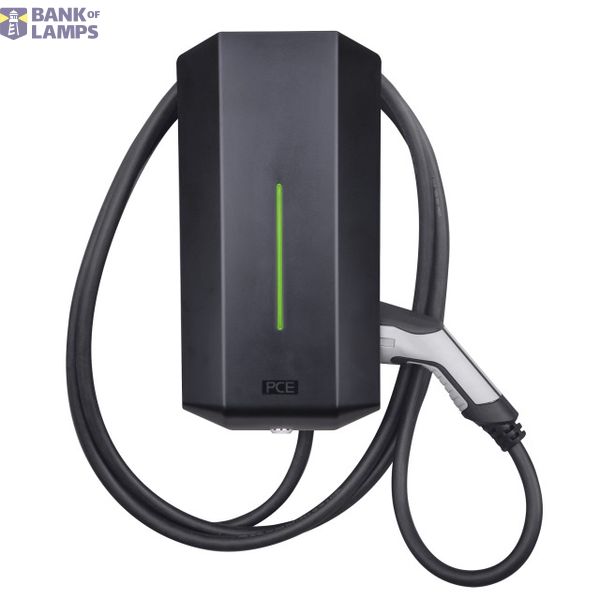

Wallbox GLB - charging station for electric vehicles
Connection: (230)400V AC, 50Hz, (single)3-phase
Number of charging units: 1
fixed charging cable 4,5m
with Type 2 connector
Max. power per charging point: 22kW
Charging current (min-max): 6A - 32A
Nominal connection power: 22kW
Protection: RCCB Type A, DC-fault protection (6mA)
Access control: input for external key switch,...
Material housing: Plastic/ black
Lockable cover
WxHxD: 205x422x124 mm
Mounting method: Wall mounting
Degree of protection: IP44
Impact strength: IK08
Ambient temperature: -25°C bis +40°C
Standards: acc. EN 61851-1, IEC 61439-7
Adjustable charging current: 6A, 10A, 13A, 16A, 20A, 25A, 32A
Connection: (230)400V AC, 50Hz, (single)3-phase
Number of charging units: 1
fixed charging cable 4,5m
with Type 2 connector
Max. power per charging point: 22kW
Charging current (min-max): 6A - 32A
Nominal connection power: 22kW
Protection: RCCB Type A, DC-fault protection (6mA)
Access control: input for external key switch,...
Material housing: Plastic/ black
Lockable cover
WxHxD: 205x422x124 mm
Mounting method: Wall mounting
Degree of protection: IP44
Impact strength: IK08
Ambient temperature: -25°C bis +40°C
Standards: acc. EN 61851-1, IEC 61439-7
Adjustable charging current: 6A, 10A, 13A, 16A, 20A, 25A, 32A
