EATON

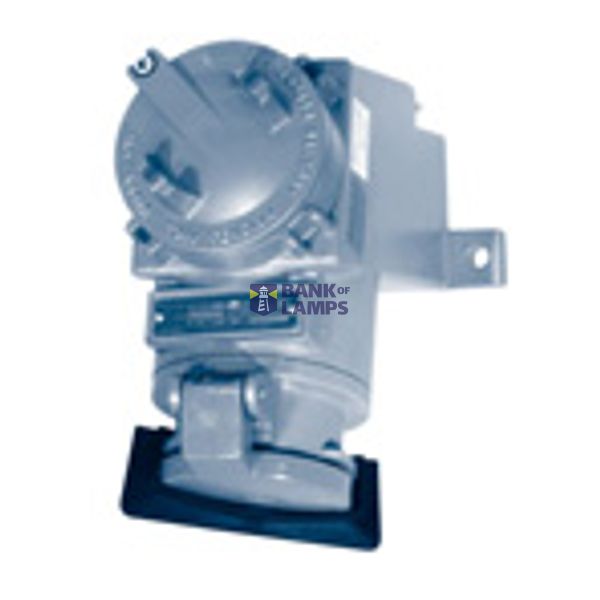

WALL SOCKET EXDE 16A 3P+E 380-415V CWX33

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name WALL SOCKET EXDE 16A 3P+E 380-415V CWX33
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 4
Housing material Steel
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Blue
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 8435156903745

Description

Ex-Wall socket for Zone 1/21; 16 A; 4-pole380-415 V; 6 h; 1 x 3/4'' metal thread; 1 x 3/4'' metal thread with dust cap
