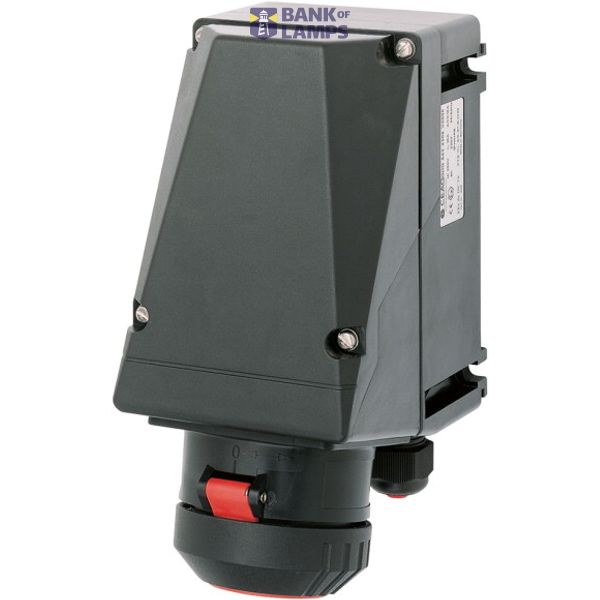

Wall socket, 16A-5Pol-6H image 1
Wall socket, 16A-5Pol-6H image 2
Wall socket, 16A-5Pol-6H image 3

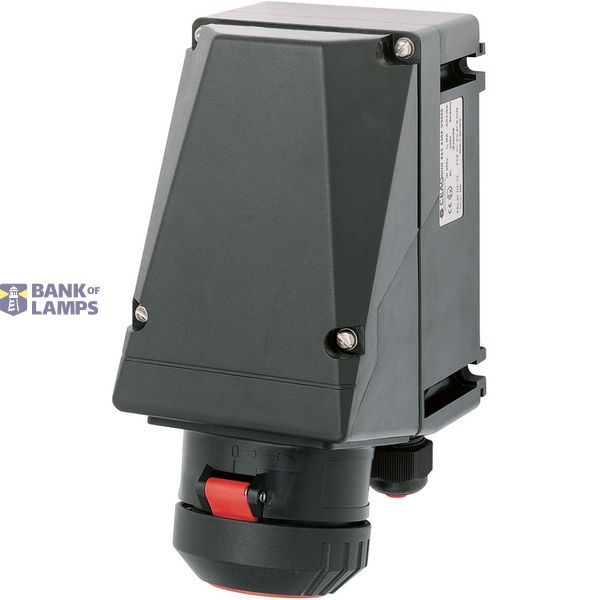

Wall socket, 16A-5Pol-6H image 4
Wall socket, 16A-5Pol-6H thumbnail 1
Wall socket, 16A-5Pol-6H thumbnail 2
Wall socket, 16A-5Pol-6H thumbnail 3
Wall socket, 16A-5Pol-6H thumbnail 4
EATON

Wall socket, 16A-5Pol-6H

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Wall socket, 16A-5Pol-6H
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 5
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217496035

Description

Wall socket 16A-5POL-6H; Cable entry: 2x M20 Metal-thread; 2x M20 Plastic-Blind plug; External grounding M6
